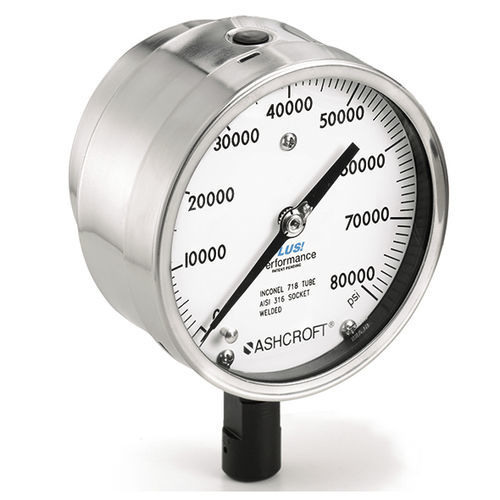

Dial pressure gauge 1109NPT 1/2NPT 1/4UNF
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Process connection
- NPT 1/4, NPT 1/2, UNF
- Material
- stainless steel, glass
- Technology
- liquid-filled Bourdon tube
- Protection level
- corrosion-resistant, rugged, IP65, IP64
- Applications
- process, for gas, for oil, for water, for vacuum, for the chemical industry
- Other characteristics
- OEM, temperature compensated, with safety case
- Pressure
Min.: 15 psi
Max.: 100,000 psi
- Precision
0.5 %
- Dial diameter
4.5 in
- Process temperature
Min.: -29 °C
(-20.2 °F)Max.: 121 °C
(249.8 °F)
Description
The Ashcroft® 1109 is a high performance 4.5″ ASME style Process pressure gauge with a stainless steel case designed for applications requiring safety and reliability.
Key Features:
Solid-front case design for safety
PLUS!™ Performance (option)
Applications:
Process Market:
Refineries
Chemical and Petrochemical Plants
Natural Gas Transmission and LNG
Water and Wastewater
Power Generation
Mining and Metals
Industrial Market:
Turbines & Compressors
Cryogenics
Waterjets and Waterblasters
Specifications
Process Connection Location
Lower
Window
Glass (STD.), Safety glass (STD.),Shatter proof glass (OPT.)
Movement
Adjustable
Case Style
Solid Front
Mounting
Stem
