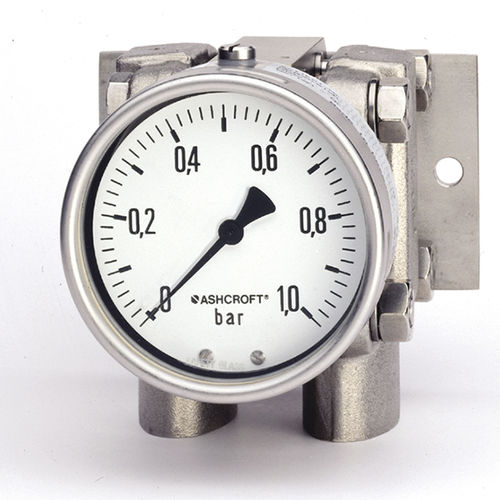

Differential pressure gauge 5503

dialthreadedNPT 1/4

The Ashcroft® 5503 gauges are ideal for precise differential pressure monitoring within harsh process environments. These stainless steel gauges can operate safely at extremely high static pressures and provide high visibility, reliability, corrosion resistance and safety. Ideal solution for monitoring differential pressures in applications such as flow measurement, tank level, filter monitoring, gas blanketing and leak detection. Key Features: Robust housing Selection of wetted materials Extremely High static pressure limits External zero adjustment Flow measurement dial (optional) Electric contacts (optional) for process monitoring and control NACE compliant (optional) Ability to attach to diaphragm seals starting at 60 IWD (3 PSID) Applications: Process Market: Refineries Chemical and Petrochemical Plants Water and Wastewater Pressure Control Mining and Metals Filter, Level and Flow Measurement Specifications Process Connection Location Lower Case Style Open front case (Although pressure chamber is designed separate from the case which allows the product to perform as a Solid Front) Mounting Direct (STD.), wall, pipe (OPT.) Wetted Material 316L stainless steel, Diaphragm up to 6# 316SS - Duratherm above 6# and optional Inconel, Hasstelloy or Monel
