analog pressure gauge / Bourdon tube / process / stainless steel



  • Display:


  • Technology:

    Bourdon tube

  • Applications:


  • Other characteristics:

    stainless steel, dial, threaded

  • Pressure:

    Max.: 200 psi

    Min.: 0 psi

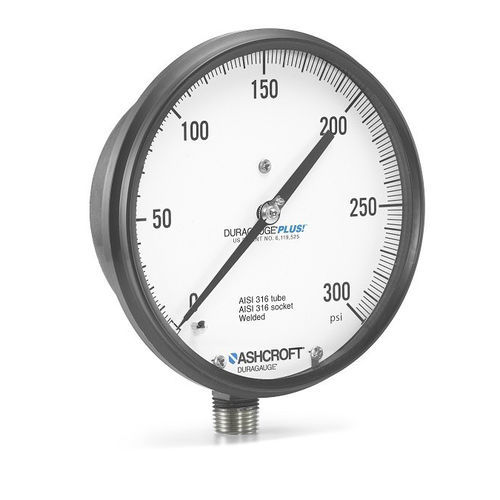

The Ashcroft® 2462 Duragauge® process gauge provides dependability, safety and performance. Used throughout the served markets, its manufacture is continuously monitored to assure uncompromising standards and material integrity. An ideal choice for satisfying most applications and installation requirements.

Key Features:
Wide selection of Bourdon tube materials, pressure connections and pressure ranges
Solid-front case design for safety
Epoxy-coated system offers superior corrosion resistance
Patented Duratube™ and "Round Cap Tip" Bourdon tube construction controls stresses for longer life
Teflon®-coated, 400 stainless steel movement
PLUS!™ Performance (option) dampens vibration, shock and pulsation effects; provides liquid-fill performance in a dry gauge
Accuracy: ±0.5% full scale (ASME B40.100 Grade 2A)
Pressure Ranges: Vacuum to 30,000 psi - Additional Ranges
Dial size: 6"
Case: polypropylene; solid-front safety design
