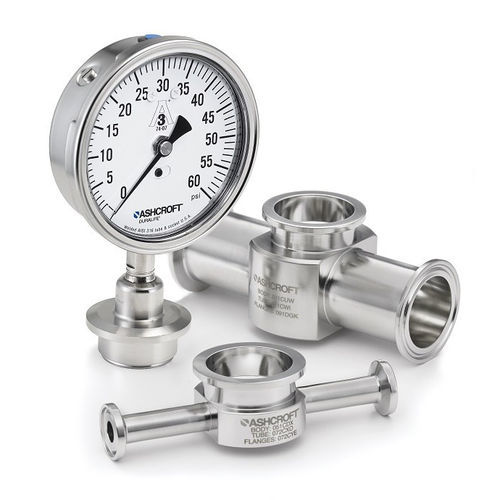

Dial pressure gauge 1036

stainless steelpolysulfonediaphragm

The Ashcroft® 1036 inline 3A approved sanitary gauge satisfies stringent sanitary requirements with its unique design. Mated with the type 1037 Inline fitting, this assembly virtually eliminates process deadleg, assuring contamination is minimized. An ideal instrument for reliability and process integrity. Available with material traceable certification to EN 10205: 2004 3.1. An electropolished diaphragm and housing make it an ideal solution for applications in the food, pharmaceutical and bio-technical industries. Key Features: Clean or steam in place (CIP/SIP) Easy Zero™ provides external adjustability of instrument span (3½˝ dial) 12-20 RA (microinches) electropolished diaphragm surface Material certificates and certificate of conformance supplied as standard to EN 10204:2004 3.1 True Zero™ reduces reading errors by using a “zero box” instead of conventional dial pins; this ensures gauge safety, integrity and system control PLUS!™ Performance (option) Autoclave or sterilize with polysulfone window Applications: Industrial Market: Specialized OEM Equipment Medical and Life Sciences: Biotech Filtration Process Connection Location Lower Case Style Open Front Window Polycarbonate Polysulfone Window Safety Glass Dampening Liquid fill or PLUS!™ Performance (Design is not recommended for gauges expected to be exposed to temperatuire over 200°F (93°C). This includes gauges subject to autoclaving.
