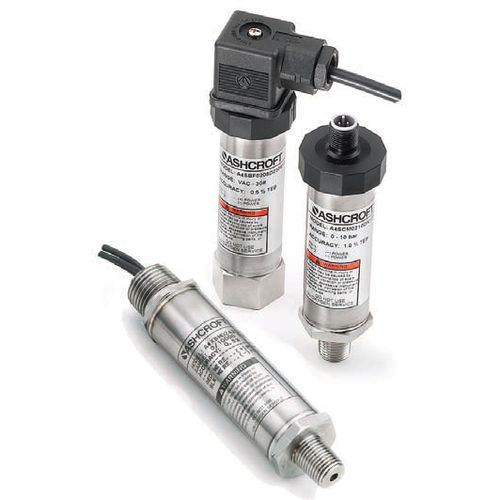

absolute pressure transmitter / membrane / threaded / stainless steel
A4

{{requestButtons}}

Characteristics

  • Pressure type:

    absolute

  • Technology:

    membrane

  • Mounting:

    threaded

  • Other characteristics:

    stainless steel, process, CE, for liquids and gases, IP65, intrinsically safe, rugged

  • Process temperature:

    Max.: 125 °C (257 °F)

    Min.: -40 °C (-40 °F)

  • Pressure range:

    Max.: 10,000 psi

    Min.: 1.5 psi

Description

This non incendive pressure transmitter serves best for a wide range of applications to include transfer control and natural gas compression, gas production and upstream oil, oil field equipment, and alternative energy products. There are 3 levels of accuracy to choose from namely 25, .50 or 1.0% and pressure ranges between 5 psi to 10,000 psi. The Type A4 TYPE pressure transmitter is approved for by CSA and FM for being non-incendive and intrinsically safe and is marked by CE as standard.

Other features of the Type A4 non-incendive pressure transmitter include Output 4-20 mA, 316L SS wetted materials, 304 SS case and buyers can there are several old zero pressure ranges to choose from. This pressure transmitter by Ashcroft® is designed to deliver reliable, accurate and stable data output and this is achieved with the help of an integrated microprocessor. This Microprocessor is programmed during an exclusive digital compensation stage to offer class leading accuracy and linearity above and beyond the specified temperature and pressure range.
