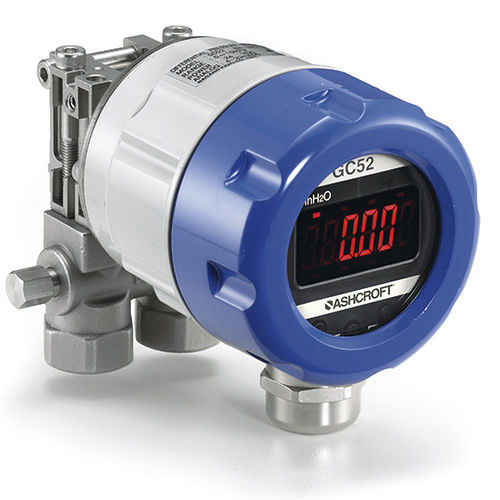

Differential pressure transmitter GC52
ceramicdigital4-20 mA

differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
ceramic
Output
4-20 mA, digital
Supply voltage
12 Vdc
Process connection
NPT 1/4
Fluid
for gas, for liquids
Material
stainless steel, aluminum, steel
Protection level
rugged, IP65, IP66, NEMA 4X
Applications
process
Other characteristics
compact, CE, RoHS, remote, wet/wet
Pressure range

300 psi

Precision

0.5 %

Long-term stability

0.25 %

Process temperature

Min.: -15 °C
(5 °F)

Max.: 65 °C
(149 °F)

Description

The Ashcroft® GC52 rangable wet/wet differential pressure transmitter is designed for use where consistent, reliable low DP measurement is essential. A 4 digit LCD along with an analog output provide both local and remote readings while a variety of electronic features are accessible through a display menu. Key Features: Compact, robust design Min./max. feature records low and high pressure events Analog scaling Simple internal “push button” configurability Flow measurement/square root extraction where the momentary flow rate can be displayed and analog signal can be output “Loop check” allows easy display of user-defined units and verification without applying pressure Bright backlit 4-digit LCD display CE approved RoHS compliant Applications: Process Applications: Pressure and Non-Pressurized Tank Levels Flow Measurement (Liquid or Gas) Pollution Monitoring Equipment Pressure Ranges Bidirectional Inches of Water: ±4 to ±200 in. H2O, Unidirectional Inches of Water: 0 to 4 thru 400 in. H2O Wetted Material Diaphragm: 316 Stainless steel, Viton® & Alumina Ceramic Process Connection: 316 stainless steel Non-Wetted Materials Enclosure: Aluminum, epoxy coated
