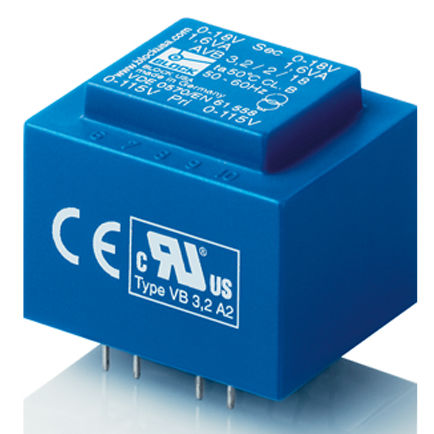

Power transformer AVB series
encapsulatedsingle-phasefor printed circuit boards

power transformer
power transformer
Add to favorites
Compare this product


Characteristics

Type
power
Configuration
encapsulated
Electrical characteristics
single-phase
Mounting
for printed circuit boards
Other characteristics
short circuit-proof
Electric power

Max.: 0.0032 kVA
(0.0044 hp)

Min.: 0.0004 kVA
(0.0005 hp)

Primary voltage

115 V

Secondary voltage

6 V, 9 V, 12 V, 15 V

Description

General Data Rated input voltage 2 x 115 Vac Rated output voltage 6 ‑ 2 x 24 Vac Rated power 0.35 ‑ 3.2 VA Insulation class B Maximum ambient temperature 70 °C (AVB 3,2 max. 50 °C) Efficiency up to 59 % Degree of protection IP 00 Advantages Minimum size at high output Unconditionally short‑circuit proof Double input voltage for series or parallel connection Also with double output voltage for series or parallel connection Designed for high ambient temperatures Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDensiFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting and hood material
