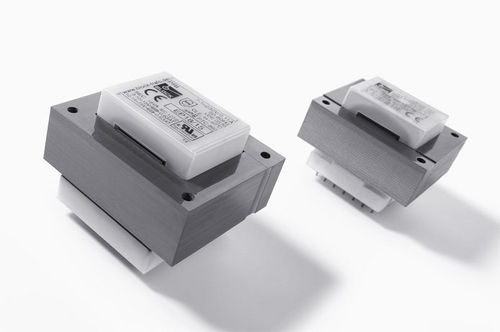

Power transformer EP series
encapsulatedsingle-phasefor printed circuit boards

power transformer
power transformer
Add to favorites
Compare this product

Go to the Block Transformatoren-Elektronik website for more information

Characteristics

Type
power
Configuration
encapsulated
Electrical characteristics
single-phase
Mounting
for printed circuit boards
Electric power

Max.: 0.035 kVA
(0.0476 hp)

Min.: 0.0045 kVA
(0.0061 hp)

Primary voltage

230 V

Secondary voltage

6 V, 9 V, 12 V, 15 V

Description

General Data Rated input voltage 230 Vac Rated output voltage 2 x 6 ‑ 2 x 18 Vac Rated power 2.5 ‑ 35 VA Insulation class E Maximum ambient temperature 40 °C Efficiency up to 79 % Degree of protection IP 00 Advantages Minimum size at high output Double output voltage for series or parallel connection Very good moisture protection and low noise thanks to BLOCKIMPEX vacuum impregnation Encapsulated safety coil bodies in 2‑chamber technology Contact protected on the circuit board thanks to covered solder pin strips Stable connection technology with injected round wire soldering pins Additional mounting option with holes in the core
