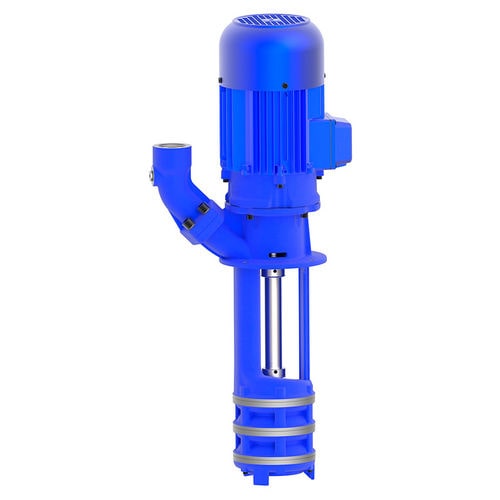

Coolant pump STA401...409 seriesfor lubricantselectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- cooling, for emulsions
- Material
- cast iron
- Fluid specification
- cutting fluid, for refrigerant fluids
- Voltage
- 380 V, 460 V
- Protection level
- immersible
- Other characteristics
- suction, multi-stage, mounting flange, low-pressure, vertical, tank-mounted
- Flow
Max.: 460 l/min
(121.51914 us gal/min)250 l/min
(66.04301 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 52 m
(170'07" )Min.: 5 m
(16'04" )- Power
Max.: 6.9 kW
(9.38 hp)Min.: 0.85 kW
(1.16 hp)- Height
Max.: 549 mm
(21.61 in)Min.: 334 mm
(13.15 in)- Weight
Max.: 104 kg
(229.28 lb)Min.: 21.5 kg
(47.4 lb)
Description
Immersion Pumps
are plain centrifugal pumps with the impeller fitted on the driving shaft extension. They are mounted on top of the container, the pump extension being immersed in the coolant.
The maximum coolant level must stay a few mm/inches below the mounting flange.
The STA serie offers a (SAE) flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid - - coolants
cooling/cutting oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
higher temperatures upon request
Construction
Pump body - - cast iron
Cover - - cast iron
Impellers - - brass
Shaft - - steel
Optional: - -
Suction cover - - with threaded inlet
Impellers - - cast steel
- -
Noise level - - 62 dBA (STA401)
66 dBA (STA402...STA404)
71 dBA (STA405...STA407)
74 dBA (STA409)
Catalogs
No catalogs are available for this product.
See all of Brinkmann Pumpen‘s catalogsOther Brinkmann Pumpen products
Immersion Pumps TB, TA, TE, STE, STA, TVG, TVA
