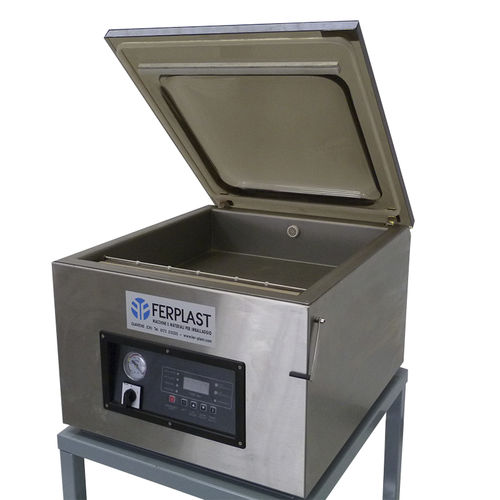

VACUUM PACKAGING MACHINES DZ 500 T - BIG CHAMBER
Vacuum machine in stainless steel with front sealing bar mm. 470 and 20 m³/h pump. Also available with modified atmosphere.
Bench vacuum packaging machine with front sealing bar, made of stainless steel (AISI 304), equipped with digital panel and electronic volumetric sensor that assures a steady control of vacuum. The bigger chamber with rounded lid allows the packaging of products with max. eight of mm. 180 and the vacuum pump from 20 m3 / h. ensures high productivity. Also available DZQ with gas inlet valve (modified atmosphere).
Vacuum machines can be equipped with gas injection system (ATM).
Each sealing bar is equipped with two nozzles which introduce gases in different quantities, so the machines are suitable for the packaging of one single use for each sealing bar. When ordering, it is possible to request a modification to the gas inlet system so as to be able to pack two bags per bar by entering the same quantity of gas for each package.
MODEL FP DZ 500 T
Sealing bar lenght mm. 470
Sealing bars 1 frontal
Chamber width mm. 500
Chamber lenght mm. 460
Chamber eight mm. 120/180 h
Vacuum pump 20 m³/h
Supply 220V
Power 1000W
Process cycle ca. 30 sec.
Machine width mm. 600
Machine depth mm. 680
Machine height mm. 500
Machine weight kg. 98
