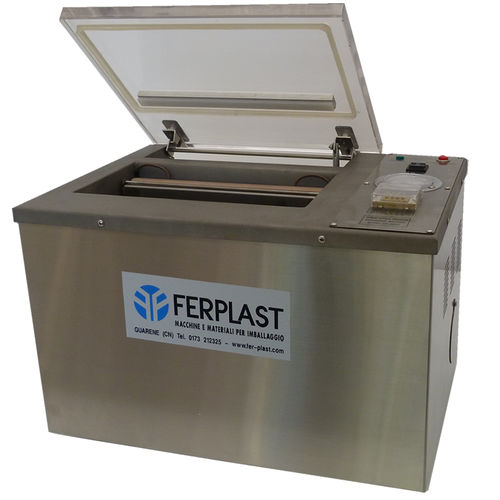

Semi-automatic packing machine DZ 280 C

vacuumbell typetabletop

Vacuum machines in stainless steel with front sealing bar mm. 280 and 10 m³/h pump. Can make squared packages. DZ-280/C table-type vacuum packaging machine is suitable to pack products in upright type bag such as tea, coffee, rice, etc. The machine is made of stainless steel (AISI 304) and equipped with digital panel and electronic volumetric sensor for the control of vacuum. The small chamber coupled to a vacuum pump with capacity 10 m3/h ensures high productivity. Also available with filter for packing powdery products such as hazelnuts flour, milk powder and products with similar characteristics. The filter must be requested at time of order. By equipping the machine with jigs realized according to the specific dimensions of the product to be packaged, it is possible to obtain squared packs. The templates are not included with the machine. MODEL DZ 280 C Bar length mm. 280 Weld width mm. 6 Chamber dimensions mm. 300 x 85 x 300 h. Maximum envelope width mm. 270 Maximum useful height mm. 300 Vacuum pump 10 m³/h 220V power supply Installed power 570W Cycle time approx. 30 sec. Machine dimensions mm 500 x 350 x 360 h. Machine weight Kg. 42
