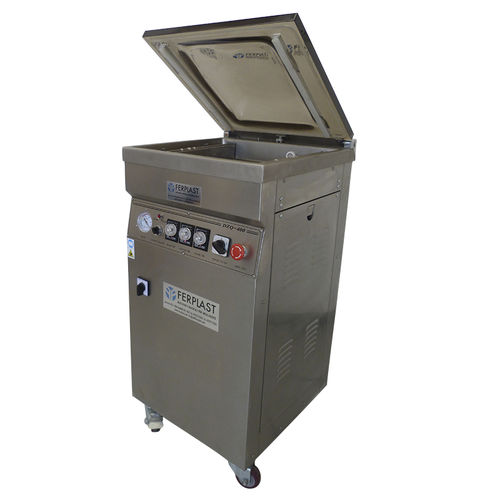

Semi-automatic packaging machine DZ 400 2E

vacuumtabletgranular

Vacuum packaging machine with 2 sealing bars mm 400. Standing on a wheeled base, built in stainless steel. Vacuum packaging machine DZ-400-2E with double sealing bars. Standing on a wheeled base, built in stainless steel (AISI 304). Equipped with a volumetric electronic sensor for steady control of vacuum. Chamber with domed lid for added usable height in the middle. The compact size of the tank and the high power of the vacuum pump allow a high productivity. The adjustment of the welding time, vacuum and gas placing (optional) occur through practical potentiometers positioned frontally. Each sealing bar is equipped with two nozzles which introduce gases in different quantities, so the machines are suitable for the packaging of one single use for each sealing bar. When ordering, it is possible to request a modification to the gas inlet system so as to be able to pack two bags per bar by entering the same quantity of gas for each package. MODEL DZ 400 2E Sealing bars lenght mm. 400 Sealing bars 2 lateral Chamber dimensions mm. 320x420 Chamber height (tank + cover) mm. 70/130 h Vacuum pump 20 mc/h Power supply 220V Power 1000 W Cycle about 30 sec Lenght mm. 480 Depth mm. 540 Height mm. 1000 Weight Kg. 110
