Automatic packaging machine FPHVC 820G

vacuumbagtablet

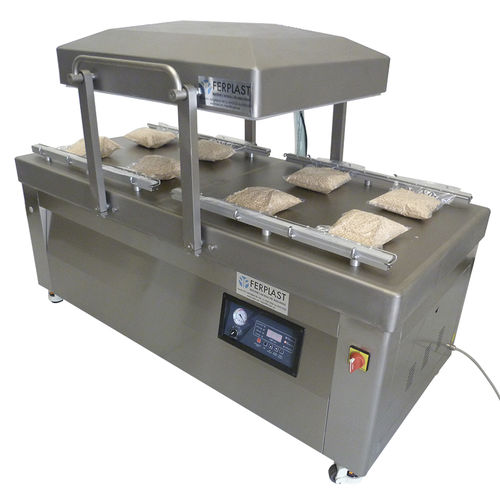

FPHVC 820G DOUBLE CHAMBER STAINLESS STEEL VACUUM PACKER WITH MOVING BELL - WITH ATM AND 100 M3/H PUMP Large vacuum packing machine with two workstations equipped with front and rear sealing bars, translating bell equipped with a comfortable handle and springs for weight balancing. AISI 304 steel construction with rounded shapes for easy cleaning, digital panel, vacuum gauge for constant vacuum control and 100 m3/h vacuum pump. for a high packing speed. The opposite sealing bars have a length of 820 mm and the distance between the front bars and the rear bars is 700 mm. The machine is equipped with a gas injection valve (packaging in ATM). FPHVC 820G - Stainless steel ATM Length of sealing bars mm 820 Number of sealing bars 2+2 front-rear Weld width 3x2 mm (two parallel 3 mm welds.) Chamber dimensions mm 910x800x225 Room useful dimensions mm 820x650x180 h. Pump 100 m3/h Work cycle 25-30 seconds 400V power supply Maximum power 4.5 kW Engine power kW 3 Welding power Kw 1.5 Machine dimensions mm. 1890x1030x1000h Machine weight (net/gross) kg 500
