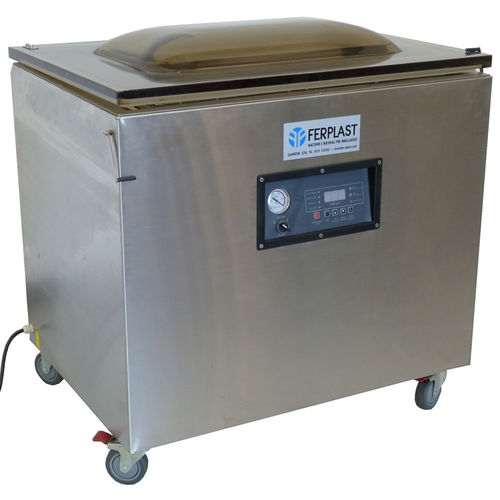

Semi-automatic packing machine DZ 900-2L

vacuumbell typehorizontal

Vacuum machines with trolley, two perpendicular sealing bars mm 500x760, stainless steel structure, vacuum pump 40 m3/h. Vacuum packaging machine large with two perpendicular sealing bars and stainless steel construction (AISI 304), with digital panel and volumetric electronic sensor for constant vacuum control. Using the short sealing bar can package products with lengths up to 820 mm. Instead using the long bar can be made more packages with a max lenght of 520 mm. The vacuum pump 40 m3 / h. ensures a high productivity. VACUUM MACHINES WITH GAS INJECTION SYSTEM (ATM) Vacuum machines can be equipped with gas injection system (ATM). Each sealing bar is equipped with two nozzles which introduce gases in different quantities, so the machines are suitable for the packaging of one single use for each sealing bar. When ordering, it is possible to request a modification to the gas inlet system so as to be able to pack two bags per bar by entering the same quantity of gas for each package. MODEL DZ 900 2L Sealing bars lenght mm 500 + mm. 760 Number of bars 2 perpendicular Useful width mm 820 Useful lenght mm 530 Useful height (chamber + lid) mm. 120/190 h Vacuum pumps 40 m³/h Power supply 220 V - 1 ph. Electric power 1900 W Process cycle ca. 30 sec. Machine dimensions mm 990x700x900 h. Machine weight Kg. 245
