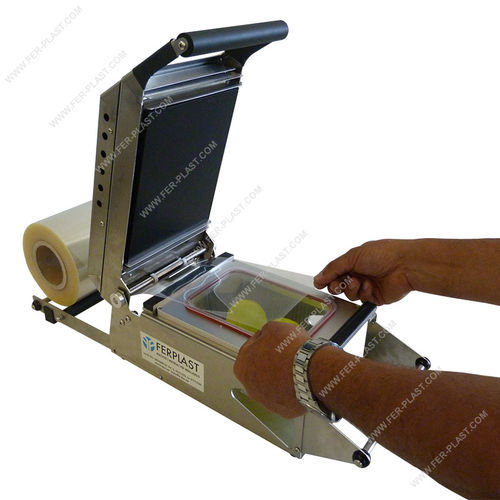

Hot air sealer FP-TM series

manualfor heatingthermostat

Bench thermosealers for food trays. FP-TM THERMOSEALERS Simple, professional, bench thermosealers, suitable for closing food trays. The FP-TM thermosealers are equipped with a hot plate that, manually lowered by the operator, allows the plastic film to be sealed onto the plastic trays, sealing and protecting the contents. The FP-TM thermosealers are equipped with a temperature selector that makes them easy to use on any type and thickness of film/trays. Depending on the machine and mold purchased, it is possible to heat up a tray or two trays simultaneously. For each type of tray you must use the relative mold. Operation: Wait for 10 minutes to warm the plate at the set temperature. Insert the tray into the mold, pull the plastic film towards you to completely cover the tray and manually lower the sealing plate. The heat-sealing machine will alert you when the seconds are elapsed. Raise the plate and pull out the sealed tray. The rear part of the film (the one towards the reel) will be cut automatically by a knurled blade. Trim the front excess film using a pair of scissors. Standard settings and temperatures: 160° - 6 seconds MODEL FP-TMS175 FP-TMS225-1 FP-TMS225-2 Voltage 220 Volt / 50 Hz 220 Volt / 50 Hz 220 Volt / 50 Hz Heating plate 190x150 mm 180x230 mm 180x230 mm Internal mold size 123x81 mm 123x177 mm 2 x 123x81 mm Power 0.5 Kw 0.5 Kw 0.5 Kw Total machine dimensions 180x470x600 mm 210x500x630 mm 210x500x630 mm Usable reel width 150 mm 150 mm 150 mm Sealable trays 1x 137x95 mm 1x 190x137 mm 2x 137x95 mm Maximum trays height 100 mm 100 mm 100 mm Trays and molds that can be used: The FP-TMS175 thermosealer is suitable for sealing 1 tray with dimensions 137x95x h. max 100 mm (trays series FPGA30P, FPGA45P and FPGA63P). The FP-TMS225-1 thermosealer is suitable for sealing 1 tray with dimensions 190x137 h. max 100 mm (trays series FPGA20G, FPGA38G, FPGA50G, FPGA72G, FPGA85G and FPIP750A) The FP-TMS225-2 thermosealer is suitable for sealing 2 trays with dimensions 137x95 h. max 100 mm (trays series FPGA30P, FPGA45P and FPGA63P). - We cannot supply molds other than the standard ones. Technical Specifications: - Voltage: 220 Volt / 50 Hz - Heating plate sizes: 190x150 mm (FP-TMS175), 180x230 mm (FP-TMS225-1, FP-TMS225-2) - Internal mold sizes: 123x81 mm (FP-TMS175), 123x177 mm (FP-TMS225-1), 2 x 123x81 mm (FP-TMS225-2) - Power: 0.5 Kw - Total machine dimensions: 180x470x600 mm (FP-TMS175), 210x500x630 mm (FP-TMS225-1, FP-TMS225-2) - Usable reel width: 150 mm - Sealable trays: 1x 137x95 mm (FP-TMS175), 1x 190x137 mm (FP-TMS225-1), 2x 137x95 mm (FP-TMS225-2) - Maximum trays height: 100 mm
