Durability tester / motor
HD-F732 HAIDA EQUIPMENT CO., LTD

Characteristics

  • Test type:

    durability

  • Tested product:

    motor

Description

Product description:

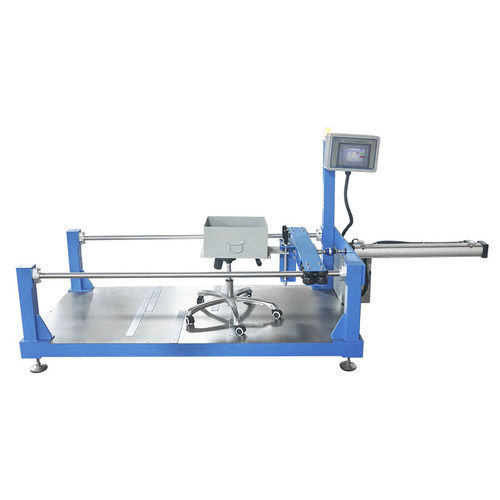

To evaluate the ability of chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth. Seat surface to place the weight (113 kg), the holding fixture driven by motor and timing belt move to and fro, in order to assess the the casters of wear life, stroke rate and the number of times can be set.


Standard Features:

Driving mode: variable frequency motor and timing belt
Stroke: 762mm (+ 50mm)
Test speed: 8 ~ 12 times / min
Holder with the up and down adjustment range: 80mm~500mm
Control mode: PLC and LCD touch screen display
Base barriers block: Can be removed
Accessories : overall test weight 113kg

application standards:
EN 1335, BIFMA X5.1
