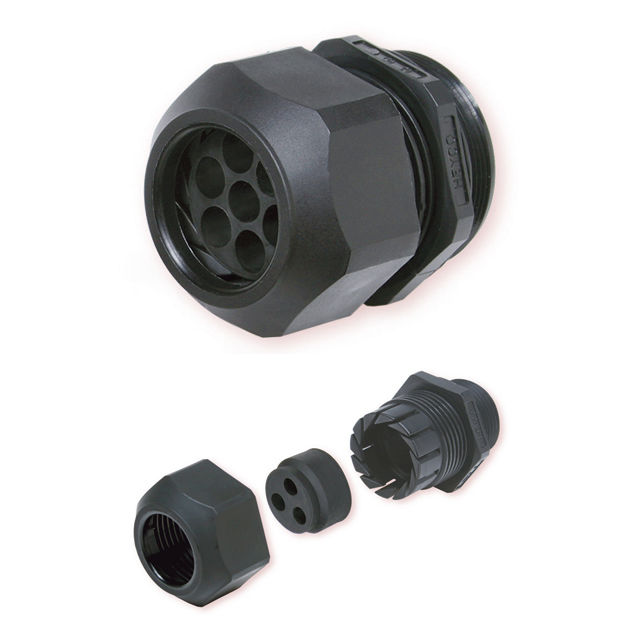

Liquid tight nylon multiple wire cable gland (straight through, threaded)
- 30 - 100 °C, PG | Heyco®-Tite
Heyco
Sequenced by Conductor Size
The Ultimate in Liquid Tight Strain Relief Protection
Heyco® Multi-hole glands provide the widest range of conductor through-hole size and number configurations, many of which are agency approved.
Heyco® Skinned-over glands offer the flexibility to use fewer of the available holes while still providing a liquid tight seal around the conductors. For examples, click here (bottom) and click here. Consult Heyco for additional Skinned-over gland number, size, and hub configurations.
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole locaton, every time.
IP 68 rated.
All accompanying Cordgrips are made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
For body part dimensions see NPT, PG and Metric Cordgrips.
Multi-hole glands are only to be used with Heyco Liquid Tight Cordgrips and are not sold separately.
Consult Heyco for cordgrips molded in other colors.
