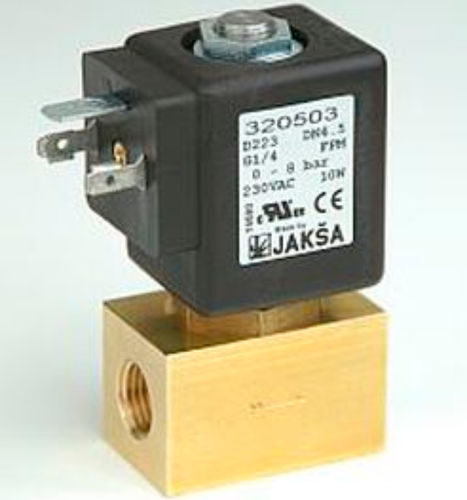

Direct-operated solenoid valve D2232-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- water, air
- Body
- PTFE, polyamide, IP65, stainless steel, brass
- Process connection
- G 1/4, G 3/8
- Other characteristics
- plug
- DN
0.25 in, 0.375 in
- Voltage
Min.: 12 V
Max.: 230 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 130 °C
(266 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 25 bar
(362.6 psi)
Description
Internal parts: stainless steel
Seals: NBR, EPDM, FPM, PTFE
Viscosity: 21 mm2/s max.
Response time: 10 to 20 ms
Duty cycle: continuous (ED100%)
Cycling rate: 1000 cycles/min max
Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
Long term use in humid environment requires the use of sealing sets.
