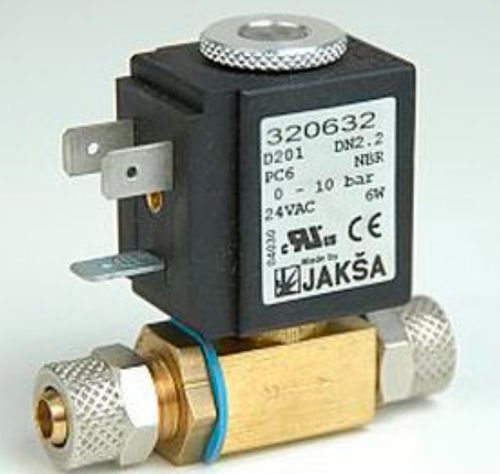

Direct-operated solenoid valve D201
2-wayNCfor water

Direct-operated solenoid valve - D201 - JAKSA SOLENOID VALVES - 2-way / NC / for water
Direct-operated solenoid valve - D201 - JAKSA SOLENOID VALVES - 2-way / NC / for water
Direct-operated solenoid valve - D201 - JAKSA SOLENOID VALVES - 2-way / NC / for water - image - 2
Direct-operated solenoid valve - D201 - JAKSA SOLENOID VALVES - 2-way / NC / for water - image - 3
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for water, air
Body
PTFE, IP65, brass
Other characteristics
ISO, plug
DN

6 mm
(0.236 in)

Voltage

Min.: 24 V

Max.: 230 V

Temperature

Min.: -10 °C
(14 °F)

Max.: 130 °C
(266 °F)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Description

Internal parts: stainless steel Seals: NBR, EPDM, FPM, PTFE Viscosity: 21 mm2/s max. Response time: 10 to 20 ms Duty cycle: continuous (ED100%) Cycling rate: 1000 cycles/min max Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400) Long term use in humid environment requires the use of sealing sets.
