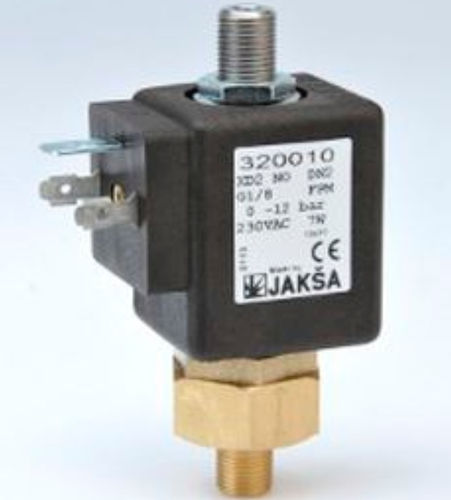

- Direct-operated solenoid valve
- JAKSA SOLENOID VALVES
- Company
- Products
- Catalogs
- News & Trends
- Exhibitions
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NO
- Medium
- water, air
- Body
- PTFE, brass, IP65
- Other characteristics
- pressure relief, plug
- Temperature
Max.: 130 °C (266 °F)
Min.: -10 °C (14 °F)
- Pressure
Max.: 12 bar (174 psi)
Min.: 0 bar (0 psi)
- DN
0.125 in
- Voltage
230 V
Description
Internal parts: stainless steel
Seals: NBR, EPDM, FPM, PTFE
Fluid temperature: -10°C to +90°C (NBR); +130°C (EPDM, FPM, PTFE)
Ambient temperature: +55°C max
Viscosity: 21 mm2/s max.
Response time: 10 to 20 ms
Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
Duty cycle: continuous (ED100%)
Cycling rate: 1000 cycles/min max
Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
Long term use in humid environment requires the use of sealing sets.
