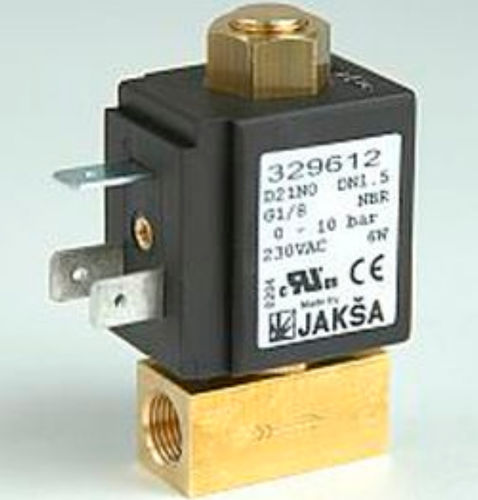

Direct-operated solenoid valve D21NO
2-wayNOwater

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NO
Medium
water
Body
IP65, stainless steel, brass
Process connection
G 1/8
Other characteristics
ISO
DN

0.125 in

Voltage

24 V, 48 V, 115 V, 230 V

Temperature

Min.: -10 °C
(14 °F)

Max.: 130 °C
(266 °F)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Description

Internal parts: stainless steel Seals: NBR, EPDM, FPM, PTFE Viscosity: 21 mm2/s max. Response time: 10 to 20 ms Duty cycle: continuous (ED100%) Cycling rate: 1000 cycles/min max Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400) Long term use in humid environment requires the use of sealing sets.

Catalogs

No catalogs are available for this product.

See all of JAKSA SOLENOID VALVES‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
