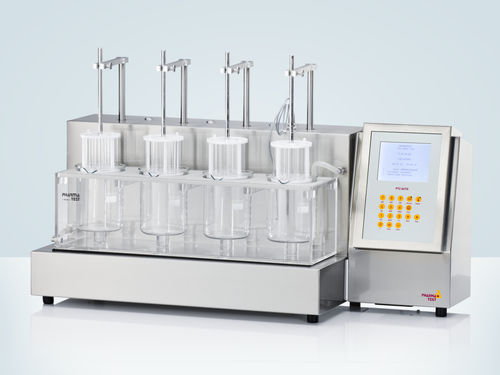

The PTZ AUTO disintegration test instruments are available as single, double, triple and four station systems. Each disintegration basket can be operated independently. They are equipped in full compliance with the current USP and EP Pharmacopoeia.
Operating Mode
A large LCD screen and an alpha-numerical keyboard are used to edit product and test information, such as the target disintegration time for each station and the bath and media temperatures. Up to 16 different testing methods can be filed in the instrument’s memory. A test screen shows the run time information once a disintegration test is started. The individual disintegration time of each sample once it was visually detected can be easily logged by pressing the corresponding numeric key. The total testing time for the station is displayed at the end of a run. A result report including the individual disintegration times can be printed by connecting a PCL printer to the instrument.
The instruments are supplied with a complete PT-MKT electronic disintegration test basket for each testing position. Each basket is used to test six samples and includes six glass tubes and six disks. For larger samples of up to 30mm diameter we offer the PT-MKT33 basket (“B”-type according to USP and EP ). This basket is used to test three samples and is equipped with three tubes and disks only.
