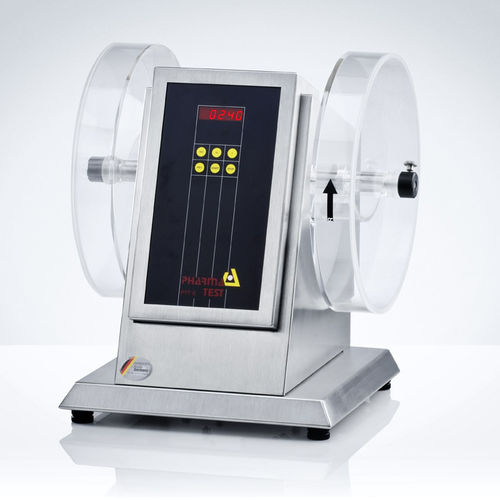

Friability testing device PTF 20E

abrasionautomatictablet

The PTF 20E double-drum tablet friability instrument with fixed speed is manufactured in compliance to the USP , EP and other Pharmacopoeias. This version is available as single or dual drum instrument. One of the testing criteria of mechanical strength of tablets and cores is friability and abrasion testing. During the process of coating, transportation and packing the tablet will lose some amount of weight. To measure the weight loss, the samples are counted and weighed. Then the friability test is performed following the individual monographs of the relevant Pharmacopoeia. The tablets are tumbled at each turn of the drum of the friability testing instrument by a curved projection that extends from the middle of the drum to the outer wall. Once the friability test is finished, the samples have to be de-dusted and weighed again. The weight difference before and after the test is determined as friability; this usually should not exceed 1%. Tablets of a weight >650mg or with a bigger diameter or odd shaped samples are tested while the instrument is raised on one side using collapsible feet to an angle of 10%. Additional Abrasion Drums The standard supply scope includes the friability (also known as “Roche”) drums, but abrasion drums are available as options. The standard friability drum causes the samples to roll and fall during the test while the abrasion drum continuously puts the sample under stress by contact with lamellas
