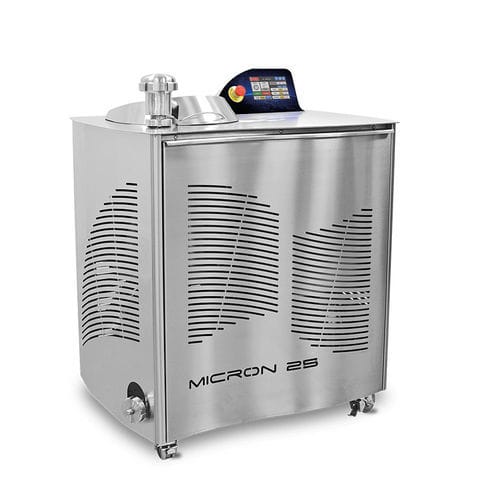

Chocolate refiner Micron 25

The Micron 25 ball refiner was designed for the production of spreadable creams, anhydrous pastes for ice creams, pralinated products and cream sweets. The machine is equipped with a refrigerator with the purpose of regulating, within the set limits, the excess heat caused by the friction generated between the spheres. Thus doing we preserve unaltered the organoleptic qualities of the product. The circulation of the product during refinement is maintained by a dual purpose volumetric pump. The refining cylinder is also regulated to maintain a warm temperature to prevent the fatty residues between the balls from solidifying during pauses in the working cycle. Electrical specification: 400 V three phase - 50 Hz Option to modify to: 220 V three phase – 50/60 Hz Power required: 4 Kw - 16 A - 5 poles Tank capacity: 20/25 kg Refining time: 15-20 kg/h Refining capacity: under 20 micron Dimensions: h. 1200 mm, w. 750 mm, d. 950 mm Needs to be connected to a compressed air source. 300 lt/min - 6 bar minimum - filtered, dry, deoiled Machine suitable for small – medium workshop. Ideal for processing frequent changes of flavour. Easily cleaned. Needs to be connected to a compressed air source.
