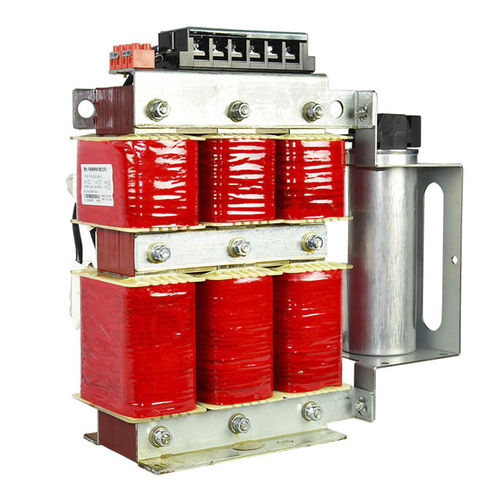

low-pass electronic filter / passive / three-phase / harmonic
LCL Shenzhen Sikes Electric Co., Ltd.

{{requestButtons}}

Characteristics

  • Bandwidth:

    low-pass

  • Type:

    passive

  • Other characteristics:

    three-phase, harmonic

  • Frequency:

    8000

Description

Product Description:
LCL filter is mainly used to mitigate harmonics on the four-quadrant frequency inverter and feedback part of the power system, to ensure the normal operation of the entire system.

Product Features:
Voltage rating: 400VAC;
Switching frequency: 8kHz;
Insulation class: Class F;
Overload capacity: 1.5 times the rated current of one minute, 1.2 times an hour;
Noise: ≦ 80 dB;
Temperature rise: ≦ 100K.

Application:
Four quadrant Inverter applications , cranes , elevators , oil jackpump , High speed centrifugal machine , agitators , conveyors etc
