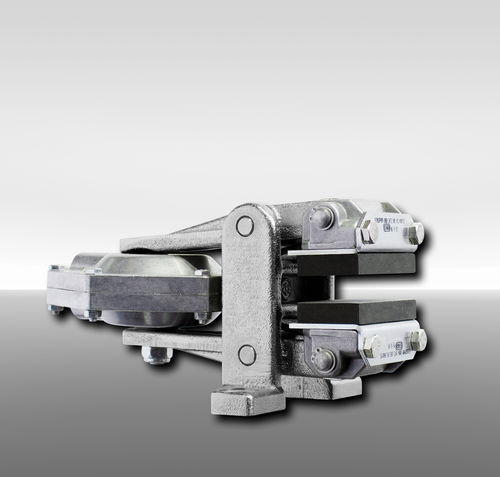

disc brake / release spring / pneumatic
DV 020 PFK, DH 020 PFK SIAM RINGSPANN

{{requestButtons}}

Characteristics

  • Type:

    disc

  • Operation:

    release spring, pneumatic

  • Braking force:

    Max.: 3500 N

    Min.: 583 N

Description

DV 020 PFK is a brake caliper manufactured by Ringspann.
This pneumatically activated tool features a total clamping force of 3 500 N at maximum of 6 bar.
It is applicable for mounting to the machine, which is aligned to the brake disc. This instrument has a brake thickness that measures 12.5mm.
This apparatus does not require adjustment to oppose friction block wear.

Ringspann's DH 020 PFK Brake Calipers exhibit machine mounting capabilities at right angles to the brake discs. They feature spring-released functions, pneumatically-actuated systems, and no adjustment mechanisms that counter friction block wear occurrences. They also showcase centralized mounting positions for thrusters, total force rates of 3 500 N and brake discs that measure 12, 5 mm.
