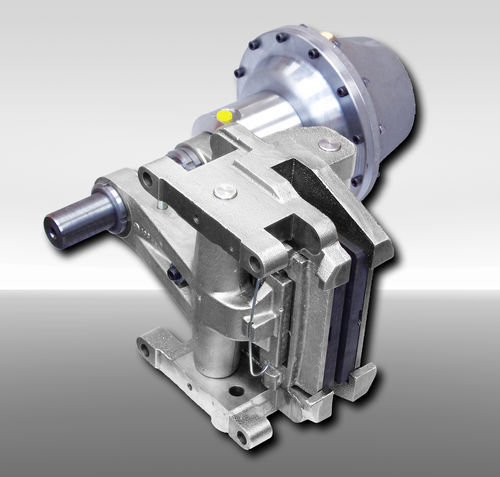

Disc brake DU 060 FHMspring activatedhydraulic release
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring activated, hydraulic release
- Torque
Max.: 38,500 Nm
(28,396.1427 ft.lb)Min.: 2,700 Nm
(1,991.4178 ft.lb)- Braking force
Max.: 65,000 N
Min.: 13,200 N
Description
Brake Caliper
Features
- Mounting to the machine, can be made either parallel or at the right angles to the brake disc
- Frame size 060
- Spring activated
- Hydraulically released
- Manual adjustment to accommodate friction block wear
- Thrusters 340, 350, 360 or 370
-Thruster mounted right or left available
-Thickness of brake disc 25 mm or 40 mm
