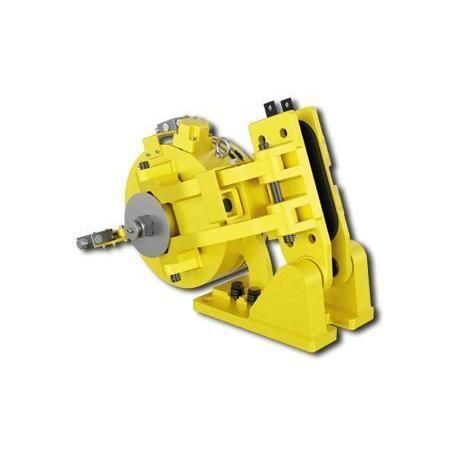

Disc brake caliper DA ST seriesspring activatedelectromagnetic release
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring activated, electromagnetic release
- Torque
Min.: 7,440 Nm
(5,487.462391 ft.lb)Max.: 33,600 Nm
(24,782.088216 ft.lb)- Braking force
48,500 N, 97,000 N
- Power
160 W
Description
Product description
Documents
Features (code)
Brake Caliper — D
Mounting perpendicular to the brake disc — A
Frame size ST1 or ST2 — ST1 / ST2
Spring activated — F
Electromagnetically released — E
Manual or automatic adjustment — M / A
Supply voltage 65 VAC — 065
Electromagnet mounted centrally — M
Brake disc thickness 30 mm — 30
Technical specifications
- Spring-activated, electromagnetically released brake caliper designed for perpendicular mounting to the brake disc. Available in frame sizes ST1 and ST2. Electromagnet mounted centrally. Manual or automatic adjustment to compensate friction block wear. Supply voltage: 65 VAC. Suitable for brake disc thickness of 30 mm.
Documents
- Datasheet DA ST1 FEM & DA ST2 FEM
- Installation Instructions DA ST1 FEM(A), DA ST2-FEM
- Industrial Brakes Catalogue
Features (code)
Brake Caliper — D
Mounting perpendicular to the brake disc — A
Frame size ST1 or ST2 — ST1 / ST2
Spring activated — F
Electromagnetically released — E
Manual or automatic adjustment — M / A
Supply voltage 65 VAC — 065
Electromagnet mounted centrally — M
Brake disc thickness 30 mm — 30
Technical specifications
- Type: Spring-activated, electromagnetically released brake caliper
- Frame sizes: ST1, ST2
- Mounting orientation: Perpendicular to brake disc
- Function: Fail-safe spring activation with electromagnetic release
- Adjustment: Manual or automatic to compensate friction block wear
- Supply voltage: 65 VAC
- Electromagnet position: Central
- Suitable brake disc thickness: 30 mm
