Caliper disc brake caliper DA 505/450/445 FEM/FEA
spring activatedelectromagnetic release

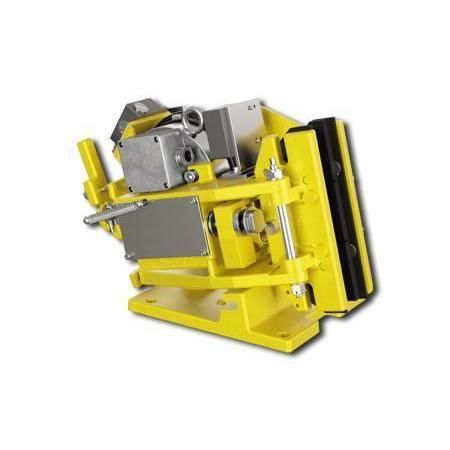

Caliper disc brake caliper - DA 505/450/445 FEM/FEA - SIAM RINGSPANN - spring activated / electromagnetic release
Caliper disc brake caliper - DA 505/450/445 FEM/FEA - SIAM RINGSPANN - spring activated / electromagnetic release
Add to favorites
Compare this product

Characteristics

Type
caliper disc
Operation
spring activated, electromagnetic release
Torque

Min.: 240 Nm
(177.014916 ft.lb)

Max.: 1,640 Nm
(1,209.601925 ft.lb)

Braking force

2,250 N, 4,600 N, 5,750 N

Power

15 W, 45 W, 50 W

Description

Product overview
  • Spring-activated brake caliper electromagnetically released, mounted at right angles to the brake disc; central electromagnet; compatible with 12.7 mm, 15 mm and 30 mm discs; rated 65 VAC.


Key features
  • Brake caliper design
  • Mounting to the machine at right angles to the brake disc
  • Frame sizes: 505, 450, 445
  • Spring-activated
  • Electromagnetically released
  • Manual or automatic adjustment to compensate friction block wear
  • Electromagnet mounted in central position
  • Supply voltage: 65 VAC
  • Supported brake disc thicknesses: 12.7 mm, 15 mm, 30 mm


Feature codes
  • D = Brake caliper
  • A = Mounting to the machine at right angles to the brake disc
  • F = Spring activated
  • E = Electromagnetically released
  • M / A = Manual / Automatic adjustment
  • M = Electromagnet mounted in central position


Technical specifications
  • Model family: DA 505 / 450 / 445 FEM/FEA
  • Function: Spring-activated; electromagnetically released
  • Mounting orientation: At right angles to the brake disc
  • Frame sizes available: 505, 450, 445
  • Adjustment: Manual or automatic to compensate friction block wear
  • Electromagnet position: Central
  • Rated supply voltage: 65 VAC
  • Supported brake disc thicknesses: 12.7 mm, 15 mm, 30 mm
