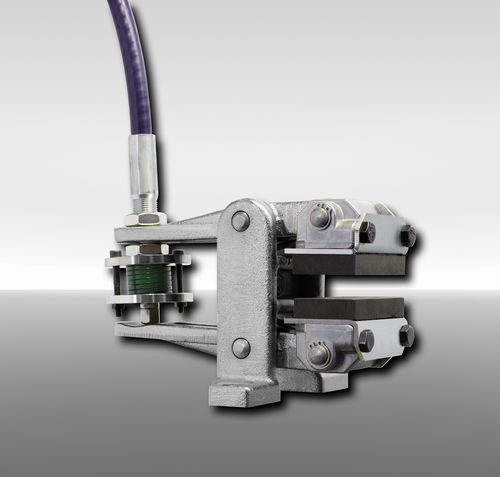

Disc brake DV 020 FKM, DH 020 FKMspring activatedmanual release
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring activated, manual release
- Torque
Max.: 510 Nm
(376.1567 ft.lb)Min.: 160 Nm
(118.0099 ft.lb)- Braking force
Max.: 2,750 N
Min.: 0 N
Description
Brake Calipers
Features
- Mounting to the machine parallel to the brake disc (DV)
- Mounting to the machine at right angles to the brake disc (DH)
- Frame size 020
- Spring activated
- Manually released
- Manual adjustment to accommodate friction block wear
- Pressure spring 510
-Pull Cable installation mounted right or left available (DV)
- Position of the Pull Cable installation to the right or left can be defined by
turning the brake during installation (DH)
- Thickness of brake disc 12,5 mm
