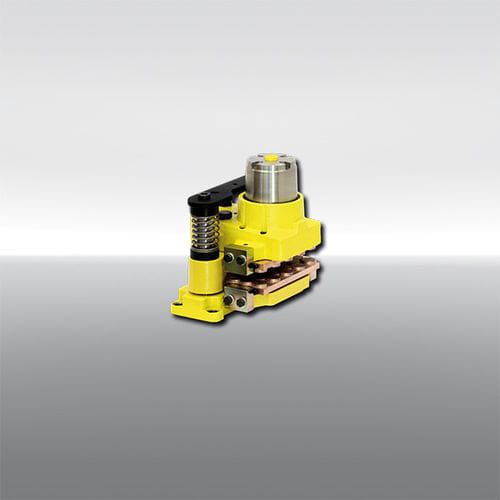

Disc brake caliper HS 075 FHMhydraulic releasespring activated
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- hydraulic release, spring activated
- Torque
Max.: 40,500 Nm
(29,871.267046 ft.lb)Min.: 1,500 Nm
(1,106.343224 ft.lb)- Braking force
Max.: 55,000 N
Min.: 10 N
Description
Brake Caliper
Features
- Floating caliper
- With piston diameter 75 mm
- Spring activated
- Hydraulically released
-Manual adjustment to accommodate friction block wear
-Spring packages available for clamping forces of
10 kN, 20 kN, 30 kN, 40 kN or 55 kN
