Disc brake DV 020 FPM , DH 020 FPM
spring activatedwith pneumatic release

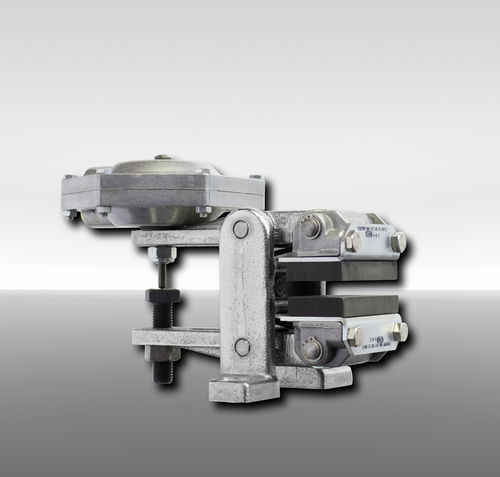

Disc brake - DV 020 FPM , DH 020 FPM - SIAM RINGSPANN - spring activated / with pneumatic release
Disc brake - DV 020 FPM , DH 020 FPM - SIAM RINGSPANN - spring activated / with pneumatic release
Disc brake - DV 020 FPM , DH 020 FPM - SIAM RINGSPANN - spring activated / with pneumatic release - image - 2
Add to favorites
Compare this product

Characteristics

Type
disc
Operation
spring activated, with pneumatic release
Torque

Min.: 97 Nm
(71.543528 ft.lb)

Max.: 650 Nm
(479.415397 ft.lb)

Braking force

1,700 N, 2,300 N, 3,500 N

Description

Brake Calipers Features - Mounting to the machine parallel to the brake disc (DV version) - Mounting to the machine at right angles to the brake disc (DH version) - Frame size 020 - Spring activated - Pneumatically released - Manual adjustment to accommodate friction block wear - Thrusters 020, 030 or 040 are available - Thruster mounted right or left available (DV version) - Position of the thruster to the right or left can be defined by turning the brake during installation (DH version) - Thickness of brake disc 12,5 mm
