Disc brake DV 035 PFM, DH 035 PFM
release springpneumatic clamping

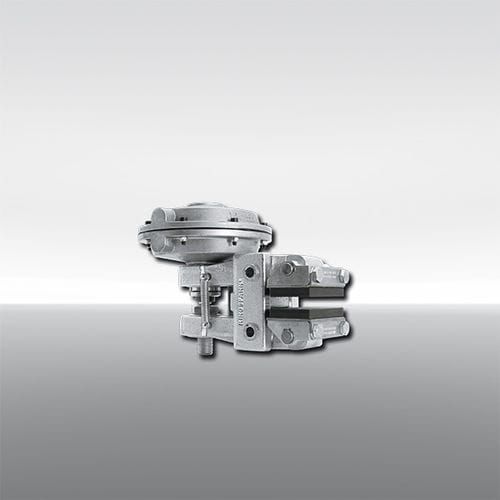

Disc brake - DV 035 PFM, DH 035 PFM - SIAM RINGSPANN - release spring / pneumatic clamping
Disc brake - DV 035 PFM, DH 035 PFM - SIAM RINGSPANN - release spring / pneumatic clamping
Disc brake - DV 035 PFM, DH 035 PFM - SIAM RINGSPANN - release spring / pneumatic clamping - image - 2
Add to favorites
Compare this product

Characteristics

Type
disc
Operation
release spring, pneumatic clamping
Braking force

Max.: 19,800 N

Min.: 950 N

Description

Brake Calipers DV 035 PFM / DH 035 PFM Features - Mounting to the machine parallel to the brake disc (DV version) - Mounting to the machine at right angles to the brake disc (DH version) - Frame size 035 - Pneumatically activated - Spring released - Manual adjustment to accommodate friction block wear - Thrusters 635, 655, 660 are available - Thruster mounted right (DV) - Thruster mounted right or left (DH) - Thickness of brake disc 12,5 mm, 25 mm, 30 mm or 40 mm
