Caliper disc brake caliper DA 405 FEM/FEA
spring activatedelectromagnetic release

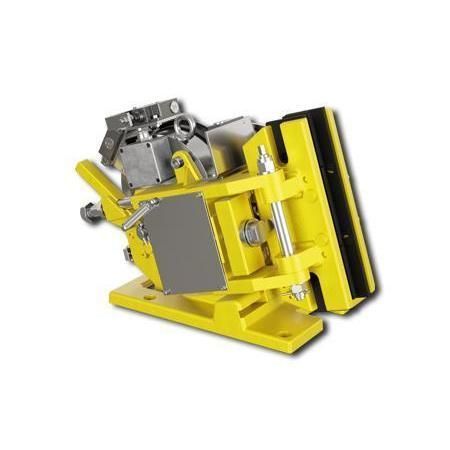

Caliper disc brake caliper - DA 405 FEM/FEA - SIAM RINGSPANN - spring activated / electromagnetic release
Caliper disc brake caliper - DA 405 FEM/FEA - SIAM RINGSPANN - spring activated / electromagnetic release
Add to favorites
Compare this product

Characteristics

Type
caliper disc
Operation
spring activated, electromagnetic release
Torque

Max.: 2,880 Nm
(2,124.17899 ft.lb)

Min.: 1,320 Nm
(973.582037 ft.lb)

Braking force

8,150 N

Power

45 W

Description

Overview
  • Spring-activated, electromagnetically released brake caliper designed for mounting to the machine at right angles to the brake disc.
  • Frame size: 405.
  • Manual or automatic adjustment to compensate for friction block wear.


Documents
  • Datasheet DA 405 FEM/FEA
  • Installation Instructions DA 505/450/445, 405, 305 FEM/FEA


Features (product data table)
  • Brake caliper — Code: D
  • Mounting perpendicular to brake disc — Code: A
  • Frame size — 405
  • Spring activated — Code: F
  • Electromagnetically released — Code: E
  • Adjustment: manual or automatic — Code: M / A
  • Supply voltage — 65 VAC
  • Electromagnet mounted in central position — Code: M
  • Brake disc thickness options — 12.7 mm; 15 mm; 30 mm


Technical specifications
  • Product type: Brake caliper
  • Model / Denomination: DA 405 FEM/FEA
  • Frame size: 405
  • Mounting: to the machine at right angles to the brake disc
  • Activation: Spring activated (F)
  • Release: Electromagnetically released (E)
  • Adjustment: Manual or automatic to accommodate friction block wear (M / A)
  • Supply voltage: 65 VAC
  • Electromagnet position: central
  • Brake disc thickness options: 12.7 mm; 15 mm; 30 mm
