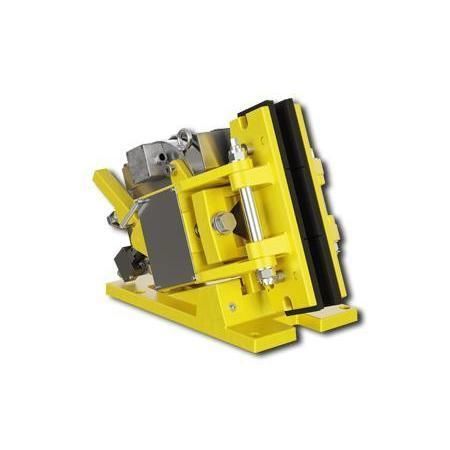

Disc brake caliper DA 305 FEM/FEA

spring activatedelectromagnetic release

Overview
Spring-activated brake caliper with electromagnetic release designed for industrial machinery. Suited for perpendicular mounting to the brake disc and available with manual or automatic pad adjustment.

Features (codes)

• Brake caliper — Code: D
• Mounting at right angles to the brake disc — Code: A
• Frame size 305 — Code: 305
• Spring activated — Code: F
• Electromagnetically released — Code: E
• Manual or automatic adjustment for friction block wear — Code: M / A
• Supply voltage 65 VAC — Code: 065
• Electromagnet mounted centrally — Code: M
• Supported brake disc thickness: 12.7 mm, 15 mm, 30 mm, 42 mm — Code: 12 to 42

Documentation

• Datasheet DA 305 FEM/FEA (PDF)
• Installation instructions for DA 505/450/445, 405, 305 FEM/FEA (PDF)

Technical specifications

• Product type: Brake caliper
• Operating principle: Spring activated, electromagnetically released
• Frame size: 305
• Mounting: To the machine at right angles to the brake disc
• Adjustment: Manual or automatic to accommodate friction block wear
• Electromagnet position: Mounted in central position
• Supply voltage: 65 VAC
• Brake disc thickness (supported): 12.7 mm, 15 mm, 30 mm, 42 mm
