Overrunning clutch
max. 20 000 Nm | ALKMSD2, ALMKMSD2
STIEBER

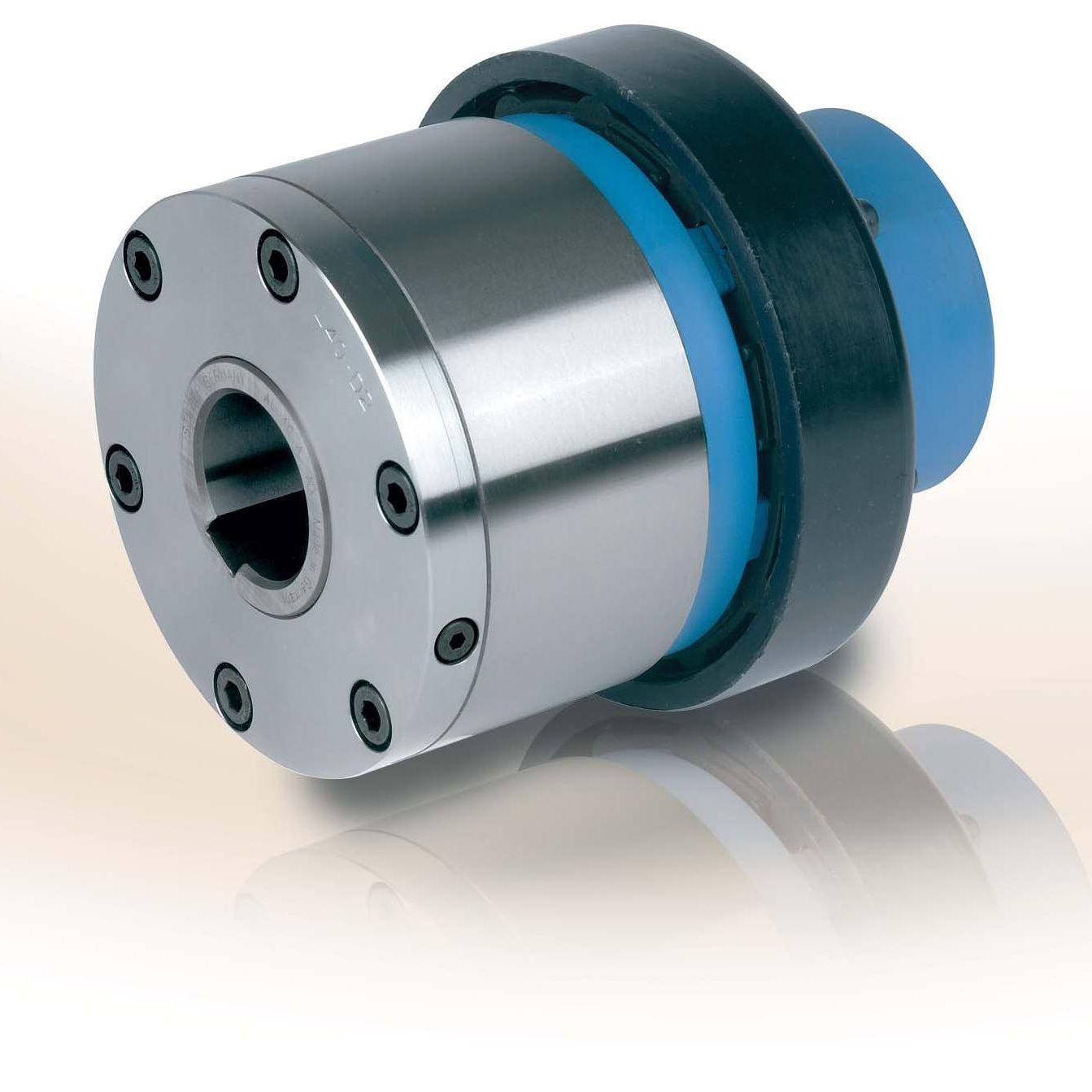

Type AL..KMSD2 is a roller type freewheel, self contained, sealed and bearing supported, using two 160.. series bearings. Unit is delivered oil lubricated.
This combination is used as overrunning clutch as shown overleaf.
In this design, a standard AL freewheel is connected to a KMS flexible coupling for in-line mounting. The KMS type is a rugged coupling, economical and suitable for many applications.
D2 cover is used to close the unit. It is equipped with two screws for oil filling, drain and level.
We recommend the unit is supplied assembled. Please specify inner race direction of rotation seen from the D2 flange.
Refer to manufacturer's catalogue to check coupling selection.
This combination is used as overrunning clutch as shown overleaf.
In this design, a standard AL freewheel is connected to a KMS flexible coupling for in-line mounting. The KMS type is a rugged coupling, economical and suitable for many applications.
D2 cover is used to close the unit. It is equipped with two screws for oil filling, drain and level.
We recommend the unit is supplied assembled. Please specify inner race direction of rotation seen from the D2 flange.
Refer to manufacturer's catalogue to check coupling selection.
