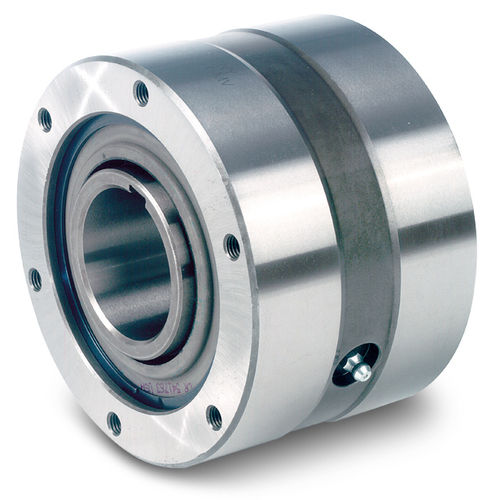

Sprag one-way clutch FSO 300 - 700 GR series
full-facewith internal bearings

Sprag one-way clutch - FSO 300 - 700 GR series - STIEBER - full-face / with internal bearings
Sprag one-way clutch - FSO 300 - 700 GR series - STIEBER - full-face / with internal bearings
Sprag one-way clutch - FSO 300 - 700 GR series - STIEBER - full-face / with internal bearings - image - 2
Add to favorites
Compare this product

Characteristics

Technology
sprag
Construction
full-face, with internal bearings
Torque

Min.: 379 Nm
(279.536055 ft.lb)

Max.: 6,900 Nm
(5,089.17883 ft.lb)

Diameter

Min.: 300 mm
(11.81 in)

Max.: 700 mm
(27.56 in)

Rotational speed

Min.: 450 rpm
(2,827.4334 rad.min-1)

Max.: 3,600 rpm
(22,619.4671 rad.min-1)

Description

The models FSO-GR 300 to 700 are sprag-type freewheels. They are self contained, sealed and bearing-supported with the two ball bearings. The bearings are shipped grease-lubricated. They have a Formsprag USA design with a full sprag complement, which provides an optimum torque for a given diameter. A sprag to sprag abutment withstands any overload by preventing a sprag tilt over.
