One-way roller clutch ALKMSD2 seriesfull-facebearingoverrunning clutch
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Construction
- full-face, bearing
- Applications
- overrunning clutch
- Torque
Max.: 20,000 Nm
(14,751.243 ft.lb)Min.: 50 Nm
(36.8781 ft.lb)- Diameter
Max.: 250 mm
(9.84 in)Min.: 12 mm
(0.47 in)- Rotational speed
Max.: 2,500 rpm
(15,707.96 rad.min-1)Min.: 250 rpm
(1,570.8 rad.min-1)
Description

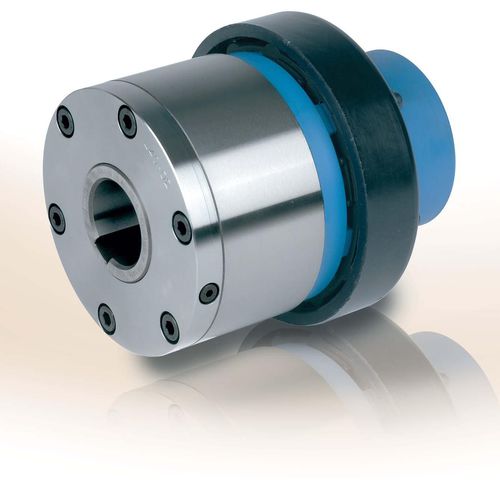

The ALKMSD2 series is manufactured by Stieber. It is an overrunning clutch with a maximum capacity of 20000 Nm. This roller type freewheel is self contained, sealed, and bearing supported by two 160 series bearings. The unit is oil lubricated before delivery.
A standard AL freewheel is connected to a KMS flexible coupling for in-line mounting. The KMS type is cost-effective, robust, and fit for a wide array of applications. D2 cover is used for closing the unit. The ALMKMSD2 also has two screws for oil filling, drain, and level.
