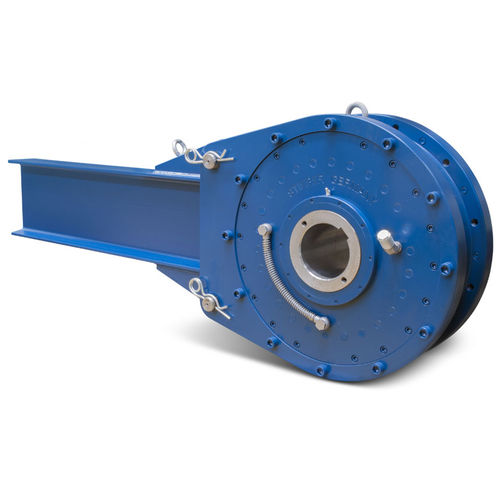

Roller backstop RDBR-E series
bearing

roller backstop
roller backstop
Add to favorites
Compare this product


Characteristics

Technology
roller
Construction
bearing
Torque

Max.: 330 Nm
(243.3955 ft.lb)

Min.: 50 Nm
(36.8781 ft.lb)

Diameter

Max.: 500 mm
(19.69 in)

Min.: 280 mm
(11.02 in)

Rotational speed

Max.: 170 rpm
(1,068.14 rad.min-1)

Min.: 100 rpm
(628.32 rad.min-1)

Description

Backstops type RDBR-E are directly mounted on the drive shaft, e.g. of heavy duty conveyer belts, mixing drum drives and chain conveyors, when torque limiting / load sharing or the release function is required. RDBR-E features a roller type backstop design with a fully bearing supported multidisc brake for the torque limiting function. The optional release function allows the tension of a jammed belt to be controlled released. Once the brake is fully opened, the capability of an unlimited rolling backwards makes maintenance safe and easy. To activate the release function, a simple hydraulic hand pump or power pack can be used. A mechanical release is available on request. Backstops RDBR-E are self contained and oil lubricated. A special sealing arrangement with grease packed labyrinth seal guarantees highest reliability under harsh conditions. The recommended shaft fit is H7/f6. The torque arm must not be rigidly fixed to the foundation. For security reasons a stopper in overrunning direction is recommended. When installed, the backstop must be axially secured.
