Sprag one-way clutch SMZ series
full-facewith internal bearings

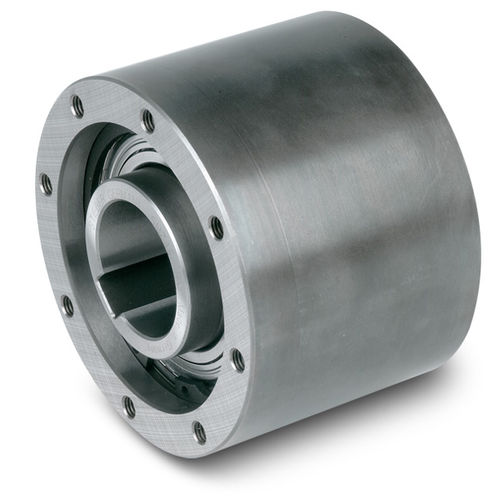

Sprag one-way clutch - SMZ series - STIEBER - full-face / with internal bearings
Sprag one-way clutch - SMZ series - STIEBER - full-face / with internal bearings
Sprag one-way clutch - SMZ series - STIEBER - full-face / with internal bearings - image - 2
Add to favorites
Compare this product

Characteristics

Technology
sprag
Construction
full-face, with internal bearings
Torque

Max.: 4,300 Nm
(3,171.517242 ft.lb)

Min.: 300 Nm
(221.268645 ft.lb)

Diameter

Max.: 70 mm
(2.76 in)

Min.: 20 mm
(0.79 in)

Rotational speed

Max.: 1,600 rpm
(10,053.0965 rad.min-1)

Min.: 250 rpm
(1,570.7963 rad.min-1)

Description

The SMZ series is a sealed, sprag-type freewheel bearing supported with the use of two 60 ZZ series grease-lubricated bearings. The bearings are shipped grease-lubricated, making it ready for installation. The series is intended as multipurpose, to be utilized in different applications. A common mounting arrangement is shown on the manual. The inner race is keyed to the shaft. The inside diameter of the outer race should be applied as the mounting register for the attached components.
