Compact servo-gearboxes

Torque: 16 Nm - 1,600 Nm
Rotational speed: 3,000 rpm

Emerson CB 3000 parallel servo gearboxes are an economical solution with a robust design. It is suitable for complex industrial requirements. Based on size and reduction ratio, the standard angular backlash is between ...

Torque: 64 Nm - 4,400 Nm

... , and non-standard layouts. The R series are servo gear boxes that has a bell enclosure and coupling. It utilizes standardized input flanges accommodating an input shaft that has a torsionally rugged ...

Torque: 15 Nm - 171 Nm

Hygienic design planetary gearbox The unique planetary gearbox with certified hygienic design – ideal for reliable cleaning processes. Our HLAE is unique: It is the world’s first planetary gearbox ...

Torque: 50 Nm
Rotational speed: 3,000 rpm
Power: 1 kW

Planetary gearbox with flange shaft output You can integrated wheels to the flange output shaft. Customize for AGVs (Automatic Guided Vehicles) in storage logistics industries. Compact size save the ...

Torque: 0 Nm - 2,000 Nm
Rotational speed: 0 rpm - 6,000 rpm

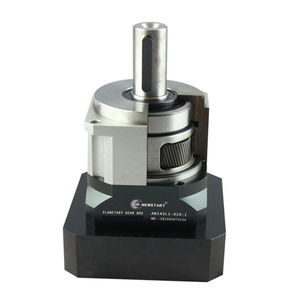

AB Series is the ideal combination of precision planetary gearbox and efficient bearing technology. It has been developed specifically for delivering the maximum performance at high speeds. Its helical teeth provide homogeneous ...

Torque: 0 Nm - 2,000 Nm
Rotational speed: 0 rpm - 6,000 rpm

... ideal combination of precision planetary gearbox and efficient bearing technology. It is the intelligent angle solution , specially developed for space-saving installation in right-angle position of motor/gearbox ...

Torque: 14 Nm - 2,050 Nm
Rotational speed: 2,000, 3,000, 4,000, 6,000 rpm

... carrier and output shaft to realize high rigidity. For any high precision applications, KPLF would be your great option for gearbox. Options - Output shaft key way, without key be available. - Synthetic lubrication ...

Torque: 1,400 Nm - 7,535 Nm
Rotational speed: 4,500 rpm

... the same low ratios as planetary gearboxes. The product design has a positive influence on temperature development in the gearbox and reduces overall heat development in the system as a result. The overall system achieves ...

Torque: 29.7 Nm - 500 Nm
Rotational speed: 1,500 rpm - 4,000 rpm
Power: 0.2 kW - 6.6 kW

The SERVO 6000 series of gears are the low backlash variants of the standard DRIVE 6000 and DRIVE 4000 series, with the following characteristics: High overload capacity Compact design High efficiency Low ...

Torque: 0.45 Nm - 1,280 Nm
Rotational speed: 1,050 rpm - 18,000 rpm

The GTE single- or two-stage gearboxes are equipped with consistent lubrication that provides minimal backlash for long-lasting operation. Designed to fit in standard areas with its minimized structure, it is capable of optimal torques ...

Torque: 90, 200, 400 Nm
Rotational speed: 4,500 rpm - 6,000 rpm

Compact. No offset. Robust bearings. Flange hollow shaft, solid shaft or hollow shaft with shrink ring. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo ...

Torque: 1,500 Nm - 2,400 Nm
Rotational speed: 10,000 rpm

Accudrive Series P high precision inline planetary servo drive will satisfy your most demanding automation applications. The compact design, universal housing with precision bearings and precision planetary ...

Torque: 38 Nm - 1,080 Nm

FEATURES AND BENEFITS The compact and robust design of the hypoid precision gear boxes is suitable for specific and highly dynamic applications. Our specially developed monobloc housing distinguishes this series with ...

Torque: 11 Nm - 60 Nm
Rotational speed: 6,000 rpm

Compact design Largest hollow shaft diameter on the market Smallest hypoid ratio i=2,75 on the market Backlash <4 arcmin Max. input speed 6000 rpm Output versions for left or right side Symmetrical ...

Torque: 2,800 ft.lb

In a compact package, these servo reducers feature minimum backlash, low input inertia, high torsional stiffness and precise repeatability. Backlash correction insures that the original backlash value ...
