Rotational speed: 240, 300, 400, 500, 650 rpm
Description Magnetic lathe chuck with demagnetization cycle for the almost deformation-free finishing, precision turning or grinding of rings or discs. Field of application Lathes Cylindrical ...

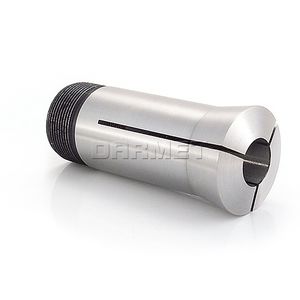

Hardinge HQC Quick-Change collets can be changed from one size collet to another size in less than 20 seconds. More Uptime on Multi-Spindle Automatics The HQC System requires less draw bar force to adequately grip the bar, greatly ...
Hardinge Workholding
Rotational speed: 3,150 rpm - 8,000 rpm
Gripping force: 48 kN - 250 kN
Outer diameter: 110 mm - 400 mm
The Duro-A is a three-jaw chuck with a through-hole that can be clamped automatically (hydraulically) by a CNC machine. It is mainly used forturningcylindrical and disc-shaped blanks. Stable damping using axial tension The ...
RÖHM GmbH
Rotational speed: 4,700, 6,000, 3,500, 4,000 rpm
Gripping force: 240, 135, 180, 64, 100 kN
Outer diameter: 315, 400, 215, 260, 180 mm
3-jaw chuck with cylindrical centre mount. Short taper mounting adapter (DIN ISO 702-1) as option. Physical characteristics High speeds and optimum centrifugal force behaviour due to low jaw weight and key bar design Large ...
RÖHM GmbH
Gripping force: 0 kN - 115 kN
Outer diameter: 74 mm - 1,250 mm
... Duro-M is a manually geared scroll chuck with through-hole, drilling and turning jaws with cylindrical mount. It is mainly used on conventional turning machines for machining turned parts. Physical ...
RÖHM GmbH
Gripping force: 16 kN - 98 kN
Outer diameter: 165 mm - 315 mm
... pneumatic chuck fixtures for indexing tables - Ø 165 - 315 mm - 2 and 3 jaws Application/customers benefit Self centering rotating chuck fixtures with a pneumatic manifold used on indexing tables, ...
OML
Outer diameter: 7 mm - 80 mm
Bonded Disc Pack Flange Chucks as Complete Clamping Fixture Features High true running accuracy ≤ 0,01 mm Permissible component tolerance up to IT11 Short or long clamping length possible Pull-back against shoulder ...
RINGSPANN
Outer diameter: 7 mm - 74 mm
Taper Collet Flange Chucks as Complete Clamping Fixture Features High true running accuracy ≤ 0,01 mm Permissible component tolerance up to IT15 Extended insertion depth Pull-back against external backstop surface ...
RINGSPANN
Outer diameter: 15 mm - 206 mm
Taper Sleeve Flange Chucks as Complete Clamping Fixture Features High true running accuracy ≤ 0,01 mm Permissible component tolerance up to IT13 Extended insertion depth Pull-back against external backstop surface ...
RINGSPANN
Gripping force: 1,000 N - 10,100 N
Stationary 3-jaw-clamping-chuck, pneumatic Through central hole up to 60.5 mm Self-centering Clamping force up to 10.100N Stroke up to 32mm Stroke control Rating IP 40
OMIL
Gripping force: 940 N - 16,650 N
Stationary 3-jaw-clamping-chuck, hydraulic-pneumatic Self-centering Compact from diam. 64 mm Clamping force up to 16.650N stroke up to 50 mm Stroke control Rating IP 40
OMIL
Gripping force: 13,500 N - 206,000 N
Stationary 4-jaw-clamping-chuck, hydraulic-pneumatic Self-centering Clamping force up to 206.000N Stroke up to 44 mm Rating IP 40
OMIL
Rotational speed: 1,400 rpm - 3,200 rpm
Gripping force: 3,100 daN - 6,900 daN
Outer diameter: 160 mm - 430 mm
... -DUX chuck is balanced following the ISO3089/74 rules and supplied with the warranty and testing certificates. The chucks with diameter 365 and 430mm, suitable for heavy-duty machinings, keep the same ...
Rotational speed: 59.3 rpm - 291.5 rpm
Outer diameter: 160 mm - 1,000 mm
... a minute, and jaw sets can be radially adjusted and reversed. The HG-N Chucks utilize SMW's original jaw design, and jaws can be used with other SMW Autoblok quick jaw change chucks such as the KNCS-N.
SMW AUTOBLOK
Rotational speed: 0 rpm - 5,000 rpm
Gripping force: 0 kN - 86 kN
Outer diameter: 30 mm - 210 mm
... leading power chuck can be used with both hard and soft jaws. Chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, ...
Kitagawa Europe
Rotational speed: 10,000, 6,000, 7,000, 4,650 rpm
Gripping force: 108, 103, 172, 120, 35 kN
Outer diameter: 114 mm - 281 mm
Maximum precision in a mini format The TOPlus premium chuck is ideal for high-precision clamping of delicate and thin-walled parts, as well as solid and massive parts. In combination with premium clamping heads and ...
HAINBUCH GMBH SPANNENDE TECHNIK
Use: for second operations in turning, hardturning, grinding and checking Very good accuracy and repeatability Totallly sealed; maintenance-free Supplied with quick change top jaws TMCR (patented TOBLER system) that allows ...
TOBLER
Gripping force: 12, 35, 55, 80 kN
Outer diameter: 165, 220, 290, 370 mm
... low maintenance • Jaws can be changed between chucks of the same design • Reinforces jaw interface for high material removal rate • Offers a wide range of applications; a chuck for turning, ...
Outer diameter: 160 mm - 550 mm
MD is an automatic indexing chuck with hydraulic clamping and indexing. It is not self-centering. ADVANTAGES • made in special high resistance hardened and cementing 60HRC steel UNI18NiCrMo5, to maintain a high degree ...
Gripping force: 5,000 N
... Recommended tightening torque, manual chucks: 4 Nm. - Permitted torque for 25 mm holder: 10 Nm - Permitted torque for 30 mm holder: 25 Nm - Maximum flushing pressure: 15 bar* - Clamping force: 5 000 N *Manual chucks ...
SYSTEM 3R
Outer diameter: 800 mm
Automatic self-centering BIG THRU-BORE CHUCK with 3 concentric retractable jaws + 3 floating jaws with stiffening Use: Thread cutting of pipe ends. The machining cycle is as follows: the 3 external self-centering-retracted ...
ROTOMORS
Rotational speed: 3,000 rpm
Another speciality from STIEFELMAYER. Eccentricities of up to 6 m can be infinitely set with the STIEFELMAYER eccentric chuck. Switching backwards and forwards between centric and eccentric machining can be done with ...
Rotational speed: 1,200 rpm - 7,000 rpm
Gripping force: 3,671 kgf - 24,472 kgf
Outer diameter: 135 mm - 800 mm
3-jaw through-hole power chuck (adapter included) • Adapter for A2 spindle(DIN 55026) • Easy to mount. • Suitable for long bore or special workpiece. • Can be equipped with automatic feeder to increase productivity. • ...
Rotational speed: 0 rpm - 6,000 rpm
Outer diameter: 112 mm - 220 mm
QUADRO® Dead Length Collet Chucks for CNC-Lathes The main range of application of the QUADRO® dead length collet chucks are NC/CNC-machines, lathes, special machines etc. The clamping pressure is hydraulically ...
Ortlieb Präzisions-
... Expander Chuck”, which allows the contractor to measure the exact path of a new pipe during the pipe pulling progress. This is possible for pipe replacement (pipe bursting, inliner) and for HDD bores. The sonde D 18 is ...
Rotational speed: 6,000 rpm
Outer diameter: 3 in - 12 in
Northfield Precision Air Chucks, also known as sliding jaw chucks, are the benchmark for high precision quality, efficient, and easy to use air chucks. The Northfield Precision Air Chuck ...
NORTHFIELD PRECISION INSTRUMENT
Rotational speed: 1,050 rpm - 3,600 rpm
Gripping force: 58.8 kN - 92 kN
... workpieces • 8”-24” chuck sizes • Manual or robotic exchange • Designed specifically for your application Unlike conventional pallet changing systems, MMK Matsumoto’s patented, automatic jaw changing power chuck ...
MMK Matsumoto Europe
Rotational speed: 4,000, 3,500, 6,000, 3,000 rpm
Gripping force: 29.2, 46, 6.8, 17, 4.1 kN
Outer diameter: 250, 80, 150, 200, 100 mm
Rotating air chucks are ideal for precision turning and cylindrical grinding applications that require close concentricity, squareness, and parallelism tolerances. Variable clamping force enables clamping ...
Microcentric
Rotational speed: 42,000, 5,000, 3,300, 6,000 rpm
Gripping force: 57, 74, 38, 96 kN
Outer diameter: 254, 169, 305, 210 mm
... life while maintaining accuracy and repeatability PACKAGE INCLUDED - Chuck and Mounting Bolts - Soft Jaws (1 Set) - T-Nuts (1 Set) - T-Nuts Bolts - Key for Chuck İnstallations - Unhandled ...
Ozkayali Workholding and Spanntechnik
... ground forged scroll • Each scroll precisely balanced • Fully hardened and ground jaw teeth and guides • Each chuck is balanced • Chuck adapter plates require no machining
Chucks are used to clamp either workpieces or tools in place for rotary operations. The two most common types are the drill chuck, used to hold drill bits, and the lathe chuck, used to hold workpieces for turning operations.
ApplicationsChucks are most often found in metalworking and woodworking applications to hold cutting tools such as drill bits, reamers and end-mills. Three-jaw and collet chucks are used to hold workpieces.
TechnologiesIn general, a chuck is designed with a certain number of jaws that grip the workpiece or tool. The jaws can either be self-centering or independently adjusted. Some chucks use a key to tighten or loosen the jaws, while others are hand-operated or even pneumatically operated.
How to chooseWhen selecting a chuck, be sure to determine technical specifications such as the diameter, rotational speed, clamping force and type of machinery on which it will be mounted.
