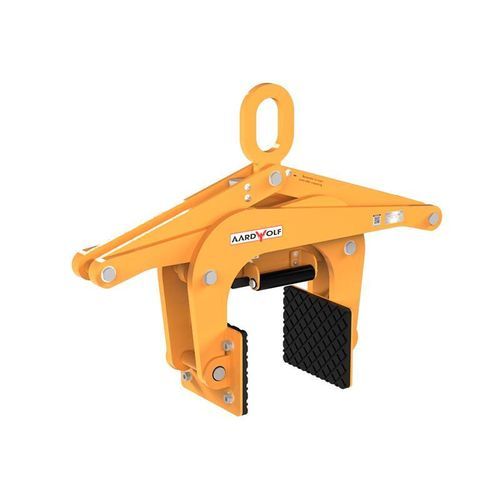

Slab lifting clamp ASL200

stoneverticalscissor

General

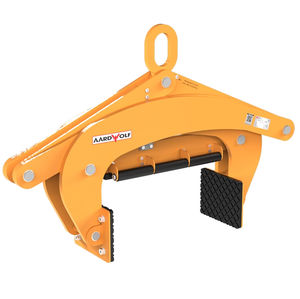

The Aardwolf Scissor Clamp Lifter ASL200 is engineered for safe vertical lifting of stone, concrete slabs and similar heavy materials in construction, fabrication and landscaping. The gravity-controlled auto-locking mechanism provides hands-free grip during lifting and automatic release on set-down, improving cycle time and site safety. Replaceable high-friction rubber pads and a rubber-lined centre rest pad protect edges and corners from chipping. Constructed from heavy-duty steel with a powder-coated safety yellow finish. Grip range: 50–200 mm (2"–8"); working load limit (WLL): 1500 kg (3307 lb).

Features

• Gravity-controlled auto-locking system for secure, hands-free grip and release
• Replaceable high-friction rubber pads and rubber-lined centre rest pad to prevent surface damage
• Side rollers for precise load centering and reduced edge stress
• Central crane hook for fast, safe attachment to crane or forklift
• Heavy-duty steel construction with powder-coated safety yellow finish for durability

Optional Extra
Short chain and shackle.

Specifications
Metric — Imperial
Grip range: 50 - 200 mm — 2" – 8"
Working load limit: 1500 kg — 3307 lb
Net weight: 47 kg — 104 lb
Gross weight: 50 kg — 110 lb
Packaging dimensions: L.820 x W.230 x H.450 mm — 32.3" x 9.1" x 17.7"

Technical specifications

• Model: ASL200
• Grip range: 50 - 200 mm (2" – 8")
• Working load limit (WLL): 1500 kg (3307 lb)
• Net weight: 47 kg (104 lb)
• Gross weight: 50 kg (110 lb)
• Packaging dimensions: L.820 x W.230 x H.450 mm (32.3" x 9.1" x 17.7")
• Construction: heavy-duty steel with powder-coated safety yellow finish
• Grip system: gravity-controlled auto-locking
• Pads: replaceable high-friction rubber pads and rubber-lined centre rest pad for edge protection
• Additional features: side rollers for load centering; central crane hook for crane/forklift attachment
• Optional extra: short chain and shackle
