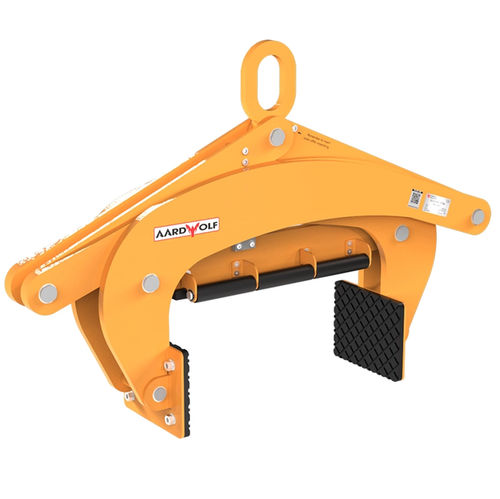

Concrete slab lifting clamp ASL450

for slabsstoneslab

General
The ASL450 scissor clamp lifter is a heavy-duty slab lifter designed for safe vertical lifting of stone, concrete and similar heavy materials in construction, fabrication and landscaping. Its gravity-actuated auto-lock engages on lift and releases on set-down, enabling hands-free operation. High-friction replaceable rubber pads and a rubber-lined centre rest pad protect material surfaces and reduce edge chipping. Constructed from steel with a powder-coated safety yellow finish, the ASL450 is suited to onsite and workshop use. Grip range: 300–450 mm. WLL: 2000 kg.

Features

• Gravity-controlled auto-locking for automatic grip on lift and release on set-down
• Replaceable high-friction rubber pads to secure and protect slabs
• Side rollers for precise load centering and edge protection
• Central crane hook for direct crane or forklift attachment
• Heavy-duty steel construction with powder-coated safety yellow finish
• Optional extras: short chain and shackle

Specifications
Metric / Imperial
Grip range: 300 - 450 mm / 12 in - 18 in
Working load limit: 2000 kg / 4408 lb
Net weight: 85 kg / 187 lb
Gross weight: 94 kg / 207 lb
Packaging dimensions: L.1060 x W.250 x H.680 mm / 41.7 in x 9.8 in x 26.7 in

Technical characteristics

• Model: ASL450
• Grip range: 300 - 450 mm (12 in - 18 in)
• Working load limit (WLL): 2000 kg (4408 lb)
• Net weight: 85 kg (187 lb)
• Gross weight: 94 kg (207 lb)
• Packaging dimensions: 1060 x 250 x 680 mm (L x W x H)
• Construction material: Steel, powder-coated safety yellow finish
• Pads: Replaceable high-friction rubber pads; rubber-lined centre rest pad to prevent edge chipping
• Safety mechanism: Gravity-controlled auto-locking (automatic grip on lift, automatic release on set-down)
• Handling features: Side rollers for load centering; central crane hook for crane or forklift attachment
• Optional extras: Short chain and shackle
