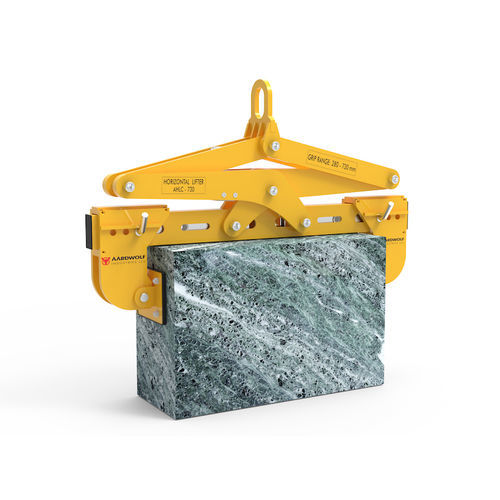

Concrete slab lifting clamp AHLC-730

for slabsstoneslab

General Description
The Horizontal Stone Lifting Clamp AHLC-730 is engineered for the safe, efficient handling of concrete blocks, natural stone and precast elements. Designed for use with cranes or forklift booms, the clamp features a gravity-actuated automatic locking and release mechanism to streamline lifting and placement while minimising manual handling.

Key Features

• Adjustable Grip Range – Accommodates block and slab widths from 280 to 730 mm for versatile onsite use.
• High Load Capacity – Working load limit of 1500 kg to handle heavy stone and concrete elements.
• Durable Polyurethane Pads – Replaceable, high-friction pads protect surfaces and ensure secure grip.
• Automatic Lock & Release – Gravity-powered jaws engage and release during lift and set-down to speed operations.
• Lifting Eye for Crane Hook Integration – Reinforced eye for secure attachment to hoists and crane hooks.
• Optional Rotating Pad & Limit Stop – Provides controlled rotation and precise positioning where required.

Specifications (Metric / Imperial)
Grip range: 280 - 730 mm / 11" – 28"
Working load limit (WLL): 1500 kg / 3307 lbs
Net weight: 112 kg / 247 lbs
Gross weight: 123 kg / 271 lbs
Packaging dimensions: L1410 x W530 x H330 mm / 55.5" x 20.9" x 13"

Applications & Compliance

• Primary Uses – Lifting concrete blocks, natural stone slabs and precast elements in construction, landscaping and stone processing yards.
• Safety & Standards – Designed and tested to meet Machinery Directive 2006/42/EC and Australian Standard AS 4991‑2004 where applicable.
• Warranty – Supplied with a 12-month manufacturer’s warranty.

Technical Data

• Model: AHLC-730
• Grip range: 280 - 730 mm (11" – 28")
• Working load limit (WLL): 1500 kg (3307 lbs)
• Net weight: 112 kg (247 lbs)
• Gross weight: 123 kg (271 lbs)
• Packaging dimensions: L1410 x W530 x H330 mm (55.5" x 20.9" x 13")
• High-friction replaceable polyurethane gripping pads
• Automatic gravity-powered locking and release mechanism
• Optional rotating pad and limit stop for precise positioning
