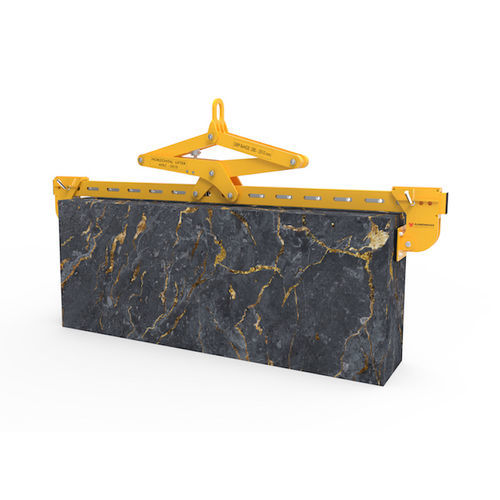

Concrete slab lifting clamp AHLC-2010

stonefor slabsblock

General The Horizontal stone lifting clamp is designed for safe handling and positioning of concrete blocks and natural stone slabs in horizontal orientation. It mounts to crane hooks or forklift booms and uses high-friction replaceable rubber pads to protect load surfaces. The gravity-operated mechanism provides automatic jaw engagement and release, reducing manual handling and improving cycle efficiency.

Applications

• Lifting and placing concrete blocks, paving stones and natural stone slabs.
• Use on construction sites, precast yards and stone fabrication workshops.
• Integration with cranes or forklifts for transport and installation tasks.

Features

• Wide grip range to handle dimensions from 280 to 2010 mm without additional adapters.
• Replaceable high-friction rubber pads to protect finished surfaces and maintain grip.
• Gravity-powered automatic engage/release for fast, repeatable operations.
• Steel construction with straightforward maintenance points for long service life.

Rotating pad and limit stop integration

• Optional rotating pad enables controlled rotation of loads for positioning in horizontal and vertical planes.
• Limit stop preserves a safe separation between clamp and material during rotation operations.
• Quick-change pad design allows fast installation and replacement on site.

Specifications Metric | Imperial
Grip range: 280 – 2010 mm | 11" – 79"
Working load limit: 1500 kg | 3307 lb
Net weight: 137 kg | 302 lb
Gross weight: 155 kg | 342 lb
Packaging dimensions: L2450 x W530 x H360 mm | 96.5" x 20.9" x 14.2"

Maintenance & safety

• Inspect rubber pads and replace when worn to maintain safe grip.
• Check pivot points and pins regularly and lubricate per manual.
• Use appropriate slinging practices and follow site lifting procedures.

Options & accessories

• Rotating pad and limit stop upgrade for material rotation tasks.
• Spare rubber pad sets and maintenance kit available.
