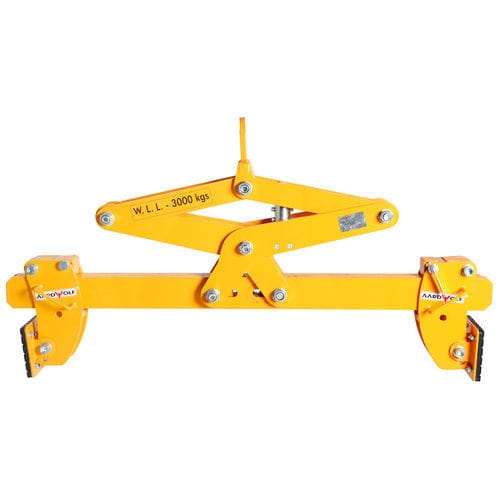

Stone lifting clamp AVBC-1100

blockhorizontal

General
The Versa Block Clamp is a lifting tool for moving concrete blocks, stone blocks, rubber tyres, drums and other heavy items. It uses adjustable sliding pads that can be set to different widths and are locked with a latch on each side to ensure a secure lift.

Adaptability
Can be fitted with a range of jaws, including reversible jaws, to handle different material shapes and to pick up objects from an external surface or from within. Jaws are designed for quick change or reversal to match the handling requirement.

Features

• Capacity for heavy loads: construction rated to the specified working load limit.
• Automatic grip and release: automated grip/release mechanism to reduce manual intervention and speed handling cycles.
• Adjustable jaw width: sliding pads adjustable across the full grip range with secure latch locking.
• Interchangeable jaws: optional jaws for square, cylindrical or irregular profiles; reversible for internal or external gripping.

Specifications
Grip range: 150 - 1100 mm — 6" - 43.3"
Working load limit (WLL): 3000 kg — 6614 lb
Net weight: 161 kg — 355 lb
Gross weight: 175 kg — 386 lb
Packaging dimensions: L1500 x W570 x H360 mm — 59" x 22" x 14.2"

Technical specifications

• Product name: Versa Block Clamp
• Product code: AVBC-1100
• Grip range: 150 - 1100 mm (6" - 43.3")
• Working load limit (WLL): 3000 kg
• Net weight: 161 kg
• Gross weight: 175 kg
• Packaging dimensions: L1500 x W570 x H360 mm
• Key features: adjustable sliding pads with latches, reversible/changeable jaws, automatic grip & release
