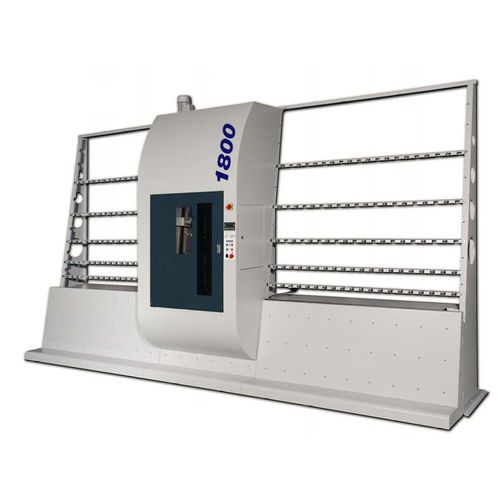

suction blast cabinet / automatic / conveyor
SV6

{{requestButtons}}

Characteristics

  • Technology:

    suction

  • Operational mode:

    automatic

  • Other characteristics:

    conveyor

Description

Indicated for big and small productions and serial works.
Useful heigh: 1800 mm with upper opening
Automatic fences of 2000 mm each side
Automatic cleaning filter with soundproof cartridge.
Meassures: 5200 x 1350 x 3100 mm.
Work speed: 1 m2 / 2 min.
Weight: 1200 Kg.
Glass thickness: from 3 to 100 mm.
Useful inner surface: 950 x 650 x 1800 mm.
Smallest piece: 250 x 250 mm.
Filter power: 0,55 Kw.
Maximum towing weight: 250 Kg.
Required air flow rate: 2000 lts/min.
Progressive degradations.
Conveyor belt feed distance.
Start and end of work with visual displays.
Automatic belt return movement.
Possibility of working with one or two guns.
Elimination of limit switches for continuous working in urgent jobs.You can programme and save the dimensions of the parts.
Up to 60 work fields are created on the part to be sandblasted
Possibility to adjust the intensity of the sandblasting also being able to degrade it.
Manual gun for punctual finishing (optional).
