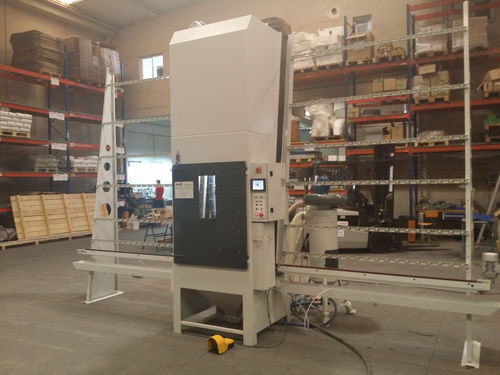

suction blast cabinet / automatic
SV3000 CON PLC AB SHOT TECNICS

{{requestButtons}}

Characteristics

  • Technology:

    suction

  • Operational mode:

    automatic

Description

For big land and small surfaces or mass produced work.
Useful sandblasting height: 1200 mm, upper-side open allows higher sandblasting.
3000 mm high automatic fences (1000 mm for each side) or 5000 mm (2000 mm for each side).
Soundproof and automatic cleaning’s filter. It's regulated by sequences, with compressed air strikes.
Possibility to work with one or two blastguns.
Program and memorize the measures of pieces.
Create till 60 sandblasting scopes on the piece in several zones and memorize till 90 different process.

Measurements: 3200 (5200) x 800 x 2500 mm.
Work Speed: 1 m2 / 2 min.
Weight: 800 Kg.
Glass Thickness: from 3 to 100 mm.
Inner useful surface: 950 x 650 x 1200 mm.
Minimum piece: 250 x 250 mm.
Suction dust power: 0,55 Kw.
Maximum weight pulling: 250 Kg.
Necessary air flow: 1000/2000 lts/min. (regulable)

OPTIONALS:
Gradual degradation.
Manual blastgun for specific jobs
