suction blast cabinet / manual
S3

Add to MyDirectIndustry favorites

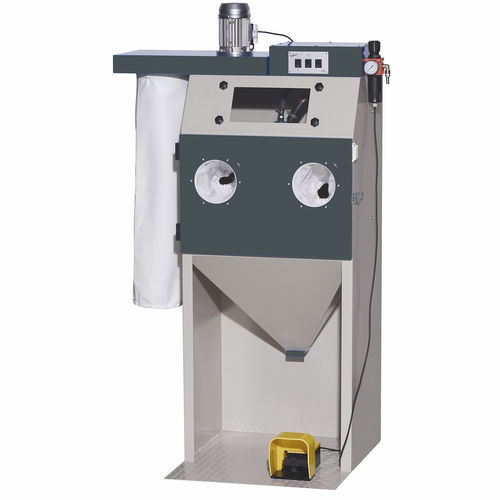

suction blast cabinet / manual suction blast cabinet / manual - S3
{{requestButtons}}

Characteristics

  • Technology:

    suction

  • Operational mode:

    manual

Description

It is highly recommended to sandblast medium or little pieces for general industry.
It is made in steel 15/10, epoxy painted.
The dust exhauster is incorporated.
Airtight safety glass to observe the working process.
Illumination inside.
Front door with openings and sleeves to introduce your hands.
Built-in boron carbide nozzle of Ø 6mm.
Anti-static suction hose.
Air circuit with pressure regulator filter and electric valve to open and close. The sandblasting gun work is controlled through an electrical pedal.

Dimensions: 1030 x 535 x 1704 mm.
Working area dimensions: 640 x 500 x 600 mm.
Weight: 90 Kg.
Electric consumption: 200 W.
Voltage: 220/230 V. single-phase
Compressed airflow: 600 l/min. a 6 Atm.

Optionals:
Door with a rotatory basket to sandblast small pieces automatically.
